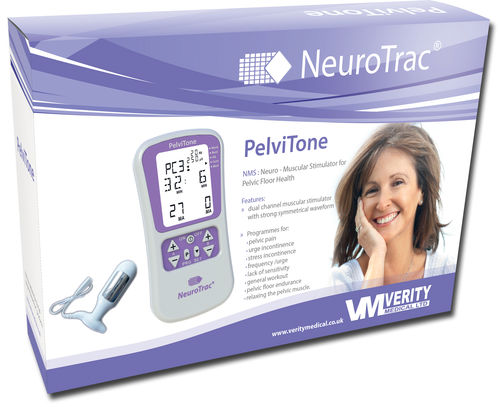

Pelvic floor stimulator PelviTone

hand-heldNMES2-channel

Dual channel PelviTone device has all the features of Continence device, plus: Advanced multi-phase programmes where treatment is split into time phases with different stimulation parameters; Stronger symmetrical stimulation with the reduced Pulse Width : 50 – 330 μS. Three Custom programmes plus 11 Preset Continence programmes. Lock mode function to measure the home compliance (mA and time used) NeuroTrac™ VeriProbe – The Vaginal probe for EMG and Electrostimulation. STIM Dual channel: individually isolated circuits. Amplitude: 0-90 mA into 500 Ohm load; actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 86 mA, at 1500 Ohms load the maximum will be limited to 65 mA. Type: Constant current, maximum output voltage 180 Volts +10 / -30 Volts Waveform: Symmetrical, rectangular bi-phasic with zero DC current. Selectable pulse width: 50 μS – 330 μS [2% accuracy]. Pulse Rate selection: in the continuous mode 2 – 100 Hz [2% accuracy]. Time duration of the treatment selectable: 1 minute to 90 minutes. Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second. Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero. Ramp up time 0.1 – 9.9 seconds. If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.
