electro-stimulator / hand-held / TENS / NMES

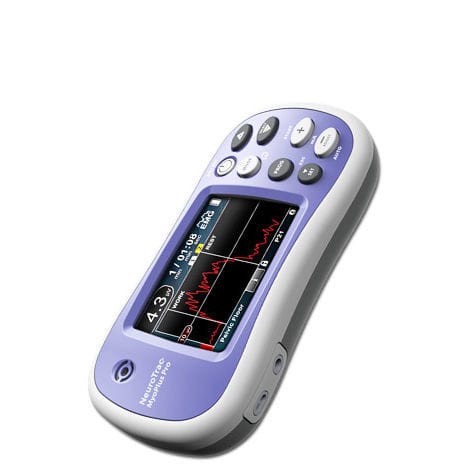

NeuroTrac® MyoPlus Pro Verity Medical

{{requestButtons}}

Characteristics

  • Type:

    electro-stimulator

  • Ergonomics:

    hand-held

  • Type of electrical stimulation:

    TENS, NMES, RETS

  • Number of channels:

    1-channel

Description

1. EMG
1.0 Single channel EMG
1.1 EMG Range: 0.2 to 2000 μV RMS (continuous)
1.2 Sensitivity: 0.l μV RMS
1.3 Accuracy: 4% of μV reading +/-0.3 μV at 200 Hz
1.4 Selectable Bandpass filter - 3db Bandwidth,
a. Wide: 18 Hz +/- 4 Hz to 370 Hz +/- 10% - Reading
below 235 microvolts
10 Hz +/-3 Hz to 370 Hz +/- 10% - Reading
above 235 microvolts
b. Narrow: 100 Hz +/- 5% to 370 Hz +/- 10%
1.5 Notch filter: 50 Hz (Canada 60Hz) - 33 dbs (0. 1% accuracy)
1.6 Common Mode Rejection Ratio: 130 dbs Minimum @ 50 Hz
1.7 Work / Rest periods: 2-99 seconds
1.8 Number of Trials: 2-99

2. NMES, TENS and ETS
2.1 Single channel Stimulator
2.2 Amplitude: 0-90 mA into 500 Ohm load - actual mA will tend to be less
than indicated due to Electrode impedance: at 1000 Ohms load (Electrodes
in poor condition) the maximum will be limited to 75 mA, at 1500 Ohms
load the maximum will be limited to 50 mA.
2.3 Type: Constant current, maximum output
voltage 70 Volts +5 / -10 Volts
2.4 Waveform: Symmetrical, rectangular,
bi-phasic with net zero DC current
2.5 Pulse width selection: 50-330 μS (10% accuracy)
2.6 Pulse rate selection: 2-100 Hz (5% accuracy)
2.7 Work / Rest periods: 2-99 seconds
2.8 Time 1 - 99 minutes
2.9 Ramp up time: 0.1 - 9.9 seconds
2.10 Preset and user programmable treatment Programs
2.11 Automatic output shut off with detection of open electrode above 10 mA
(+/- 2mA).
