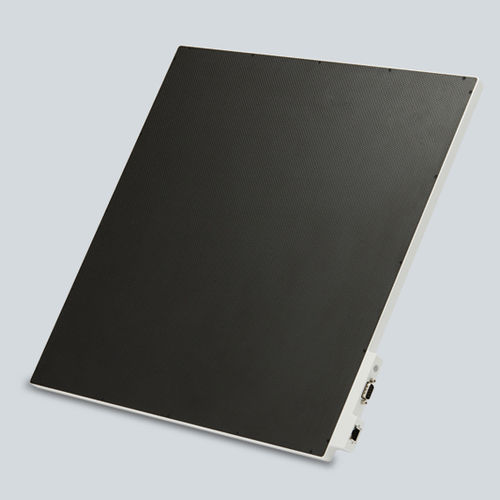

Multipurpose radiography flat panel detector VIVIX-S 1717V

portable17 x 17

Superior Image Quality High MTF & DQE Easy Upgrade Anytime™ : Vieworks' proprietary AED (Automatic Exposure Detection) technology with reliable performance ISO 4090 : same size as a film/CR cassette Better Usability Light and Slim Design : 4.5 kg Fast Image Acquisition Time : 2 s Short Booting Time : 15 s Specifications Technology a-Si TFT Scintillator CsI / Gadox Pixel Pitch 140 ㎛ Spatial Resolution 3.5 lp/㎜ Pixel Matrix 3072 x 3072 pixels Grayscale 16 bits Image Acquisition Time 2 s Recommended Cycle Time 15 s Data Interface Gigabit Ethernet X-ray Generator Interface - DR trigger Mode AED Mode Weight 4.5 kg X-ray Voltage Range 40 - 150 kVp Operating Environment 10℃ to 35℃ 30 % to 85 % RH (non-condensing) Power Consumption DC 24 V, 0.6 A
