ビデオ変換器 AVIP-A4601E-B1C

USB4K解像度

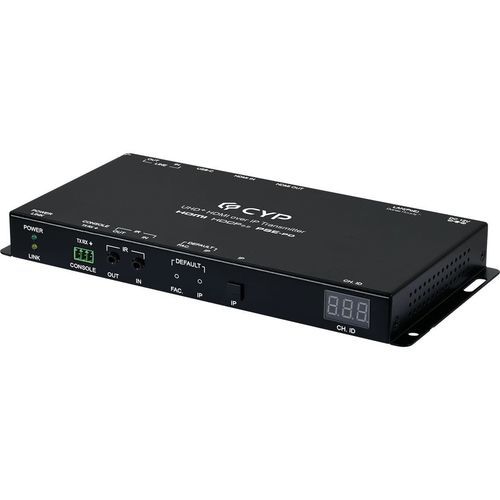

4K@60 HDMI over IP Transmitter• 4K@60 1Gbps AV over IP transmitter in Unicast or Multicast mode.• IP interface: RJ45• Supports comprehensive USB over IP functionality (USB flash drive, keyboard and mouse) and seamless collaboration across multiple windows• Supports PoE-PD (IEEE 802.3af).• Support IP to IR/ RS-232, converting the IP signal into IR and RS-232 commands for device control.• Controlled via WebGUI, IP Master Controller, and Telnet• 1×HDMI input, 1×HDMI loopback output• Supports the use of an external control center (IP Master Controller) to provide expanded functionality (Contact your authorized dealer for more information)• Supports independent breakaway A/V and control matrix routing• Supports extension of many audio formats including 8 channel LPCM and standard Bitstream• The analog Line In is automatically embedded in the streaming output and can be independently routed to any receiver• Optional Dante ReadyTM is compatible with existing Dante and AES67 audio networks• Dante Ready brings Dante functionality to products already shipping and installed in sites• Channels and features can be added as an installation growsThis unit supports Unicast and Multicast for video walls and multi-window collaboration. It transmits Ultra HD video (up to 4K@60Hz RGB), audio, and USB 2.0 over a single cable up to 100 m, extendable via gigabit switches without delay.It features IP-to-IR/RS-232 control, bi-directional IR and RS-232 pass-through, analog audio I/O, mic input, and USB-over-IP for remote hub use. Control options include OSD, WebGUI, Telnet, and IP Master. It’s also Dante Ready, ensuring integration with 4,000+ Dante-compatible devices.Type: videoOptions: 4K, copper
