外科用レーザー Gbox

ダイオード卓上

Présentation

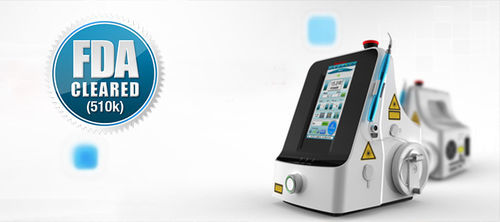

The new Gbox portable surgery diode laser system is a compact, portable medical diode laser platform designed for a wide range of clinical applications. Small-size body case with peak output power up to 30W. Multiple wavelength options and flexible handpiece configurations enable both continuous and pulsed operation, in contact or non-contact modes.

Wavelengths & Modes

• Wavelength options: 450nm, 532nm, 810nm, 980nm, 1064nm, 1470nm, 1940nm
• Operates in continuous and pulsed modes

Applications

• Dental / Dentistry
• Endovenous Laser Treatment (EVLT)
• ENT procedures
• PLDD (percutaneous laser disc decompression)
• Lipolysis / Liposuction
• DEEP Tissue Therapy
• Veterinary applications
• Broad clinical versatility via dedicated handpieces and accessories

Accessoires et configurabilité
The system supports various accessories to extend clinical functionality: flexible fibers, handpieces with different shapes and lengths, micro-endoscopes, specific therapy handpieces (e.g. PM3 therapy handpiece), ENT handpiece sets and lipolysis cannulae. Full standard accessories are provided to enable end users to work directly with the system.

Points forts / Caractéristiques produit

• User-friendly interface with advanced software and preset protocols; operator can rename, customize parameters and save protocols
• Output power calibration at the end of fibers; built-in power meter and software test for output
• Adjustable aiming/pilot beam, background light and sound
• 20 KHz top-pulsation for fast, tissue-protecting performance
• 8-inch touchscreen display for control and settings
• Highly integrated and modular design for easier maintenance and lower cost
• Compact portable carry case (metal) with coded lock for transportability
• Comprehensive range of application-specific handpieces (ENT handpieces set, PM3 therapy handpiece, lipolysis cannulae, etc.)
• Reliable after-sale service and distributor training

Compact & portable
The device is designed for portability: metal carry case, fiber holders for cleanliness and convenience, fiber lengths typically 3 meters. The manufacturer indicates that with proper sterilization of fibers the system can support a high number of procedures (manufacturer claim ~200 cases per 3 m fiber if user sterilizes it themselves).

Certifications
Manufacturer indicates FDA approval for their laser systems.

Caractéristiques / spécifications techniques

• Model / series: Gbox
• Maximum peak output power: 30 W
• Available wavelengths: 450 nm, 532 nm, 810 nm, 980 nm, 1064 nm, 1470 nm, 1940 nm
• Operating modes: continuous and pulsed
• Pulsation capability: up to 20 KHz top-pulsation
• Handpiece modes: contact and non-contact handpieces supported
• Accessories: flexible fiber, multiple shaped/length handpieces, micro-endoscope, PM3 therapy handpiece, ENT handpiece set (7 pieces), lipolysis handpiece (cannulae in 5 lengths, re-sterilizable up to 40 times each)
• Fiber length (typical): 3 m (manufacturer example)
• Output power calibration: end-of-fiber calibration and built-in power meter (software)
• Display: 8-inch touch screen
• Dimensions (manufacturer): 245 mm (L) × 215 mm (W) × 315 mm (H)
• Weight (manufacturer): approx. 5 kg
• Packaging: metal portable carry case with coded lock
• Design: highly integrated modular design for ease of maintenance
• Intended clinical uses: surgery, aesthetics, therapy, EVLT, ENT, PLDD, lipolysis, veterinary
• Regulatory note: systems from the manufacturer indicated as FDA approved
