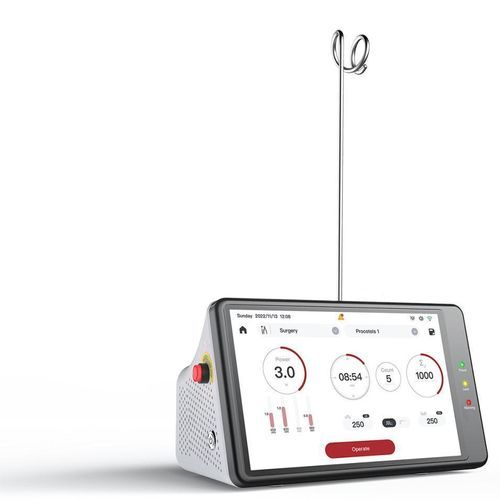

外科用レーザー CHEESE PLUS

歯科用歯のバイオスティミュレーション用体のバイオスティミュレーション用

Product Overview
CHEESE PLUS is a mini multi-wavelength medical laser system offering combinations of visible and near-infrared wavelengths for dentistry, therapy and veterinary applications. The platform supports multiple order models/variants and is FDA 510(k) cleared (FDA 510(k) Number K230047).

Wavelengths and General Applications

• 450 nm: used for certain soft tissue surgeries (excision, incision) with reduced bleeding and tissue damage, promoting faster healing and less pain.
• 650 nm (635 nm / 650 nm references on the page): used for biostimulation and pain treatment to promote healing, tissue regeneration, reduce inflammation and alleviate pain.
• 810 nm: penetrates deeper for deep tissue surgery and procedures (e.g., root canal treatment, oral surgery) while minimizing collateral damage and bleeding.
• 980 nm / 980 nm family: strong tissue penetration suitable for deep tissue injury treatments, fractures, spinal disorders and potential neurological therapy applications.
• 1064 nm: near-infrared wavelength for deep muscle, bone and joint treatments; effective for pulpitis treatment, bone tissue surgery, lumbar muscle strain, knee joint pain and arthritis.

Dentistry — Main Uses
The four wavelengths of 450 nm, 650 nm (635 nm), 810 nm and 1064 nm have different applications in dentistry and can be applied to soft tissue surgery, incisions/excisions, root canal treatment, pulpitis treatment, bone tissue surgery and biostimulation to accelerate healing and reduce pain and inflammation.

Therapy — Main Uses
Different wavelengths provide therapeutic benefits in rehabilitation and pain management. For example, 650 nm stimulates cell metabolism and circulation to reduce chronic pain and support tendon/ligament recovery; 810 nm offers deep tissue biostimulation to reduce inflammation and relieve musculoskeletal pain; 980 nm and 1064 nm provide strong penetration for deep tissue, bone and joint therapy, improving mobility and offering long-lasting pain relief.

Technical Specifications (tabbed tables extracted)
Dentistry (Parameters / CHEESE PLUS)
Parameter | CP18G | CP13G | CP23G
Order Model | CP18G | CP13G | CP23G
Wavelength | 635nm+445nm+810nm | 635nm+445nm+1064nm | 635nm+445nm+810nm+1064nm
Maximum Power | 200mW + 3W + 15W | 200mW + 3W + 10W | 500mW + 3W + 10W + 10W
Pilot Beam | 532nm | 532nm | 532nm
Operation Mode | CW, Repeat Pulse | CW, Repeat Pulse | CW, Repeat Pulse
Pulse Duration | 10μs – 3s | 10μs – 3s | 10μs – 3s
Repetition Rate | 0.2Hz – 20KHz | 0.2Hz – 20KHz | 0.2Hz – 20KHz

Therapy (Parameters / CHEESE PLUS)
Parameter | CP20RT | CP20DRT
Order Model | CP20RT | CP20DRT
Wavelength | 635nm+980nm | 635nm+810nm+980nm
Maximum Power | 500mW + 20W | 500mW + 10W + 10W
Pilot Beam | 635nm | 635nm
Operation Mode | CW, Repeat Pulse, IPS | CW, Repeat Pulse, IPS
Pulse Duration | 10μs – 3s | 10μs – 3s
Repetition Rate | 0.2Hz – 20KHz | 0.2Hz – 20KHz

Veterinary (Parameters / CHEESE PLUS)
Parameter | CP20RV | CP20RV | CP25RV
Order Model | CP20RV | CP20RV | CP25RV
Wavelength | 635nm+980nm | 635nm+810nm+980nm | 635nm+450nm+810nm+980nm
Maximum Power | 500mW + 20W | 500mW + 10W + 10W | 500mW + 5W + 10W + 10W
Pilot Beam | 635nm | 635nm | 635nm
Operation Mode | CW, Repeat Pulse, IPS | CW, Repeat Pulse, IPS | CW, Repeat Pulse, IPS
Pulse Duration | 10μs – 3s | 10μs – 3s | 10μs – 3s
Repetition Rate | 0.2Hz – 20KHz | 0.2Hz – 20KHz | 0.2Hz – 20KHz

Caractéristiques / spécifications techniques

• Denomination commerciale / Model name: CHEESE PLUS.
• Available order models (examples from tables): CP18G, CP13G, CP23G, CP20RT, CP20DRT, CP20RV, CP25RV.
• Supported wavelengths: combinations including 445 nm, 450 nm, 635/650 nm, 810 nm, 980 nm, 1064 nm.
• Maximum power: varies by model (examples: up to combinations of 500mW, 3W, 5W, 10W, 15W, 20W depending on channel).
• Pilot beam options: 532 nm or 635 nm depending on model.
• Operation modes: Continuous Wave (CW), Repeat Pulse, IPS (where specified).
• Pulse duration range: 10 μs – 3 s.
• Repetition rate range: 0.2 Hz – 20 KHz.
• FDA 510(k) clearance: K230047.
