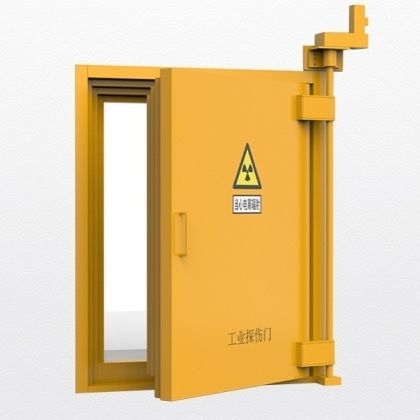

放射線防御用ドア

遮蔽Ｘ線防護密封

Product Introduction
The shielding design should fully consider the direction and range of exposure to the useful radiation beam, the operational load of the device, and outdoor conditions. The walls in the direction of the useful beam projection should be designed according to the primary shielding requirements, while those in other directions should be designed according to the requirements for leakage and scattered radiation shielding.

Product Performance

• The door surface can be treated with sandblasting and fluorocarbon coating, and the motor shall meet the IP54 dustproof and waterproof rating.
• Door Integrity: The shielding materials shall be continuous and intact. The lead sheet inside the door body shall be tightly fitted to the frame to prevent radiation leakage caused by looseness or gaps.
• Process: 30mm Pb + 120mm boron-containing polyethylene paraffin.
• Material: Door panel: 1.0 mm thick; Door body: 10 mm Q235 steel plate.
• Motor: Adopts a brand-name motor, equipped with high-load-bearing rails and cover plates.
• Protection: Equipped with a special anti-fingerprint mirror finish belt for radiation protection.
• Color: 304 anti-fingerprint stainless steel or AkzoNobel electrostatic spraying sheet.
• Frame Requirement: The frame is supported by No.24 channel steel.

Technical Parameters
Technical parameter information and illustrations are provided for shielding structure and configuration (refer to the product technical parameter images embedded in the original product detail).

Application Fields

• Department of Radiology: Comprehensive imaging diagnosis and interventional therapy using X-rays, gamma rays and other radiation to image internal structures for anatomical, functional and pathological evaluation.
• Department of Radiation Oncology: Localized therapeutic modality using ionizing radiation (radioisotope emissions, X-rays, electron beams, proton beams, etc.) for cancer treatment.
• Department of Nuclear Medicine: Uses nuclear science technologies for diagnosis and treatment; integrates imaging, therapy, research and teaching.

Caractéristiques / spécifications techniques

• Shielding process: 30 mm lead (Pb) layer + 120 mm boron-containing polyethylene paraffin.
• Door panel thickness: 1.0 mm.
• Door body material: 10 mm Q235 steel plate.
• Motor protection rating: IP54 (dustproof and waterproof).
• Surface treatment options: sandblasting + fluorocarbon coating; anti-fingerprint mirror finish belt available.
• Color/finish options: 304 anti-fingerprint stainless steel or AkzoNobel electrostatic spraying sheet.
• Frame support: No.24 channel steel.
• Shielding integrity: lead sheet must be continuous and tightly fitted to frame to prevent leakage.
• Drive and mechanical: uses brand-name motor with high-load-bearing rails and cover plates.
