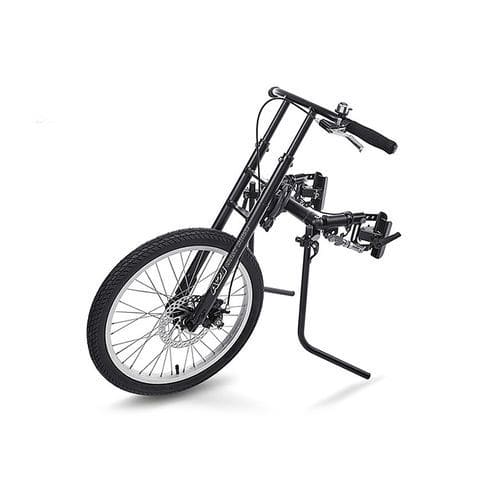

Disabled people wheelchair wheel Crazy Horse Active Power

mechanicalfrontaluminium frame

Overview
Wheelchair sports attachment designed to improve outdoor mobility and leisure use for active wheelchair users. Compatible with many rigid and folding-frame wheelchairs.

Version

• Weight: 7 kg with assembly stand
• Wheel size: 20 inches
• Tyres: from 20 x 2.00
• Parking brake operable with a single hand
• Disc brake: mechanical, diameter 160 mm
• Positive steering via special O-ring
• Assembly stand included
• Bike bell included

Scope of application
Suitable for outdoor activities and varied terrains:

• Cobblestones and uneven pavements
• Gravel paths, forest tracks and unpaved roads
• Small thresholds and steps
• Sandy beaches and gravel beaches (improves pushability)
• Meadows and holiday use

Special features
Aluminium frame combined with stainless steel components offers high load capacity and corrosion resistance without compromising compatibility.

• Compact folded size and rapid assembly for high mobility
• Fits most rigid-frame wheelchairs and folding models with integrated footrests
• Can be assembled/disassembled in approximately 30 seconds
• Low rolling resistance for reduced effort
• Prevents overheating of hands on descents

Steering head
Unique steering-head geometry provides precise handling and improved stability; dual-spring damping supports control during cornering and straight travel.

Hand-parking brake
Mechanical hand-parking brake operable with one hand. Color options: silver or matt black.

Frame protection made of plastic
Protects the wheelchair frame from scratches during assembly and use.

Downloads

• Data Sheet (English) available
• Catalogue Crazy Horse (English) available

Technical specifications

• Weight: 7 kg (with assembly stand)
• Wheel size: 20 inches
• Tyres: from 20 x 2.00
• Disc brake: mechanical, diameter 160 mm
• Parking brake: operable with a single hand
• Steering: positive steering via special O-ring; steering head with dual-spring damping
• Frame: aluminium with stainless steel components
• Assembly: compatible with most rigid and folding frame wheelchairs with integrated footrests; assembly/disassembly in ~30 seconds
• Extras: assembly stand and bike bell included
