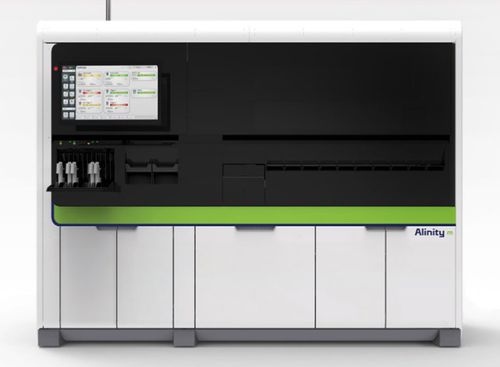

Automatic DNA/RNA analyzer Alinity m

SYSTEM OVERVIEW
The Alinity m system is a fully integrated and automated molecular diagnostics analyzer that uses real‑time PCR technology. Alinity m provides true random access with ReadiFlex Technology, continuous loading for samples, reagents and consumables with waste access, rapid time to first result and high throughput.

Key features

• ReadiFlex Technology — Abbott's proprietary technology enabling true random access without compromising turnaround time or throughput
• Universal sample rack — eliminates sample sorting to simplify front‑end workflow
• 75 opportunities to start a new assay in ~8 hours, including STAT samples
• Time to first result: <115 min
• ~300 results in ~8 hours
• Up to 20 assays on board simultaneously

Assay menu

• BKV
• CMV
• EBV
• HBV
• HCV
• HIV‑1
• HR‑HPV
• HSV / VZV
• Alinity m RESP 4‑plex
• SARS‑CoV‑2
• STI
• You Create
• MPXV

DIMENSIONS
Length: 2.49 m (98 in)
Width: 1.02 m (40 in)
Height: 1.88 m (74 in)
Weight: 1021 kg (2250 lbs)

Technical specifications / characteristics

• Type: Fully integrated and automated molecular diagnostics analyzer
• Technology: Real‑time PCR
• Random access: ReadiFlex Technology for true random access
• Loading: Continuous loading for samples, reagents, consumables and access to waste
• Front‑end workflow: Universal sample rack (no sample sorting)
• Assay capacity: Up to 20 assays on board simultaneously
• Assay startup throughput: 75 opportunities to start a new assay in ~8 hours (includes STAT)
• Time to first result: <115 minutes
• Throughput: ~300 results in ~8 hours
• Dimensions: 2.49 m (L) x 1.02 m (W) x 1.88 m (H)
• Weight: 1021 kg (2250 lbs)
