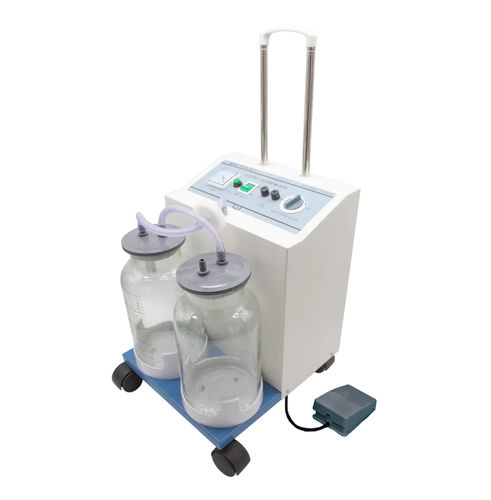

Liquids suction system ESM-2

mobile

This advanced medical suction unit is designed to meet the diverse needs of hospitals and healthcare facilities. With its exceptional features and robust performance, it sets a new standard in respiratory care equipment. Key Features: Versatile Compatibility: Suitable for a wide range of medical applications and settings, from hospitals to clinics. Dual-Head Piston Vacuum Pump: Delivers powerful and reliable suction performance. Anti-Overflow Safety Device: Prevents liquid overflow, simplifying maintenance and eliminating the need for oil changes. Dual Control System: Offers both manual and pedal switches for easy, intuitive operation. Compliance with Standards: Meets the requirements of IEC60601-1, IEC60601-1-2, and ISO 10079-1 standards. Technical Specifications: Model: ESM2 Maximum Air Flow: 25 L/min Maximum Vacuum: -0.08 MPa Vacuum Bottle Capacity: 2500 ml Power Supply: AC 220V-240V, 50Hz ± 1Hz Power Consumption: 150 W Noise Level: ≤ 60 dB(A) Operating Temperature: +5°C to +35°C Operating Humidity: ≤ 80% (non-condensing) Atmospheric Pressure: 86 kPa to 106 kPa Net Weight: 12.5 kg Gross Weight: 14.5 kg Dimensions (W x D x H): 406 x 343 x 481 mm System Overview: Pump Driving System: Dual-head piston vacuum pump Bottle System: 2500 ml collection container with overflow protection Operate System: Pumping rate of 235 L/min at the hole (air vent) and 225 L/min at the terminal Electrical System: AC 220V-240V, 50Hz ± 1Hz power supply This comprehensive medical suction unit, the ESM2, is a reliable and versatile solution for healthcare providers, offering advanced features, robust performance, and compliance with industry standards.
