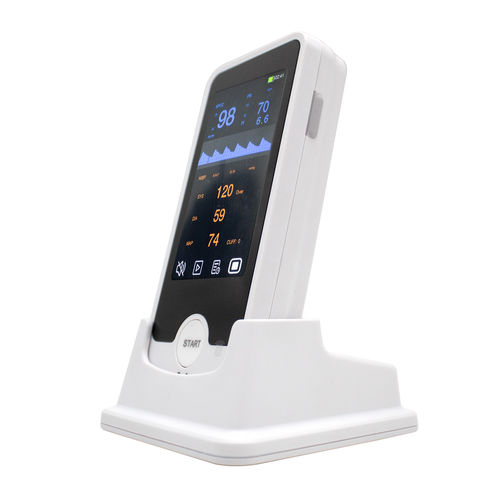

Portable patient monitor VSM-09A

SpO2NIBPTEMP

Ergonomic design for point-of-care use Technical Specifications: SpO2: Accuracy: 70% to 100% ±2%, unspecified 0% to 69% Alarm Range: Same as display range, alarm limit setup length is 1% Pulse Rate: Accuracy: ±1 bpm Alarm Range: Same as display range, alarm limit setup length is 1 bpm Refreshing Rate: Approx. 1 second Temperature: Accuracy: ±0.2°C (0°C to 50°C) Range: 0.0°C to 50.0°C Alarm Range: Upper Limit 0.1°C to 50.0°C, Lower Limit 0.0°C to 49.9°C Unit: °C or °F Alarm Delay Time: <10% NIBP: Measurement Method: Oscillometric Measured Parameters: SBP, DBP, MAP Unit: mmHg or kPa Operating Mode: Manual, Automatic, Continuous SBP Range: Adult (30 mmHg - 270 mmHg), Child (30 mmHg - 230 mmHg) DBP Range: Adult (10 mmHg - 220 mmHg), Child (10 mmHg - 165 mmHg) MAP Range: Adult (10 mmHg - 240 mmHg), Child (10 mmHg - 175 mmHg) Accuracy: ±5 mmHg or ±2%, whichever is greater Cuff Pressure Range: 0 mmHg - 300 mmHg Cuff Inflation Speed: 550 mmHg/s Static Pressure Measurement Error: ±3 mmHg (not up to over pressure protection) Display Resolution: 1 mmHg Other Specifications: Dimensions: 175 mm (H) x 85 mm (W) x 32 mm (D) Power Input: 100-240 VAC, 0.4A, 50/60 Hz ±10% Battery: Rechargeable lithium-ion, 3.7V/4000mAh Charging Time: Approx. 8 hours Buttons: 3 shortcut keys, 5 function keys Operating Temperature: 0°C to 40°C Operating Humidity: 15% to 80% non-condensing
