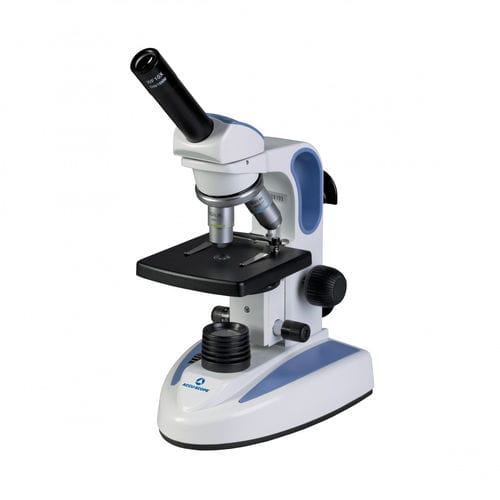

Optical microscope EXM-150

laboratorymonocularLED

DIN Optical System, f=160mm. Viewing Head: Monocular inclined head; Monocular dual inclined teaching head, inclined 45°and 360° rotatable; Monocular inclined head 45° with vertical teaching viewer. Eyepieces: WF10x eyepiece, 18mm field of view with pointer. Eyepiece is locked-in to prevent classroom tampering. Nosepiece: Rear facing three-hole, ball bearing nosepiece with positive click stops to ensure parcentration. Objectives: Standard configuration includes DIN achromat 4x, 10x and 40xR* objectives. (*spring-loaded). Stage: Stage size 119mm X 119mm with stage clips. Condenser: N.A. 0.65 condenser with five aperture disc. Stand: Cast alloy aluminum with built-in carry handle and cord hangers. Illumination: Variable and rechargeable LED illuminator. LED illuminators will last approximately 4 hours on a single charge and the expected bulb life is 20,000 hours. 3500mAh NiMH rechargeable battery. Focusing System: Separate coarse and fine focus adjustment controls. A tension adjustment is on the coarse control. A built-in slip clutch system and pre-set focus stop prevents accidental damage to objectives and slides. Accessories: Dust cover and instruction manual included. Certification: ISO 9001: 2018 and ISO 14001: 2018; CE; RoHS Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb
