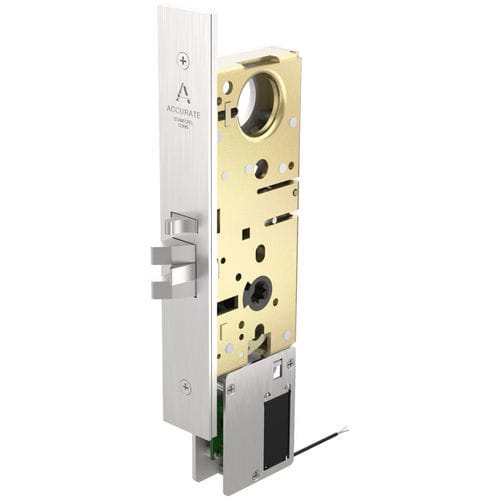

Hospital door lock M8800ELR

mechanical

The M8800ELR utilizes low voltage Motor Drive Electrification to retract the latch of the mechanical lock for easy access when presenting a credential. Outside trim is rigid, active lever on interior. It is ideal for power operated openings that facilitate accessibility/ADA compliance in commercial settings. The lock also features ‘continuous duty’ available for doors on hold open schedules. In a residential setting, this lock is popular on special function openings like wine rooms and offices. M8758ELR/M8759ELR for doors 1” minimum (1” armor front) M8858ELR/M8859ELR for doors 1-1/4" ” minimum (1 -1/4" armor front) 1-1/2", 1-3/4", 2", 2-1/4" backsets. OPERATION: Key Cylinder (by others) will override electronics to retract latch bolt. 24VDC +/-10% 500mA MAX Inrush 200mA MAX Holding Non-polarized Leads Furnished Fail Secure Operation Only. AE - Authorized Egress: Also referred to as REQUEST TO EXIT (or REX switch), monitors the use of the INSIDE trim when the OUTSIDE trim is locked. Latch bolt by handle either side. Inside and outside trim always free. Latch bolt by key either side. Inside and outside trim always rigid. Auxiliary latch deadlocks latch bolt. Latch bolt by key outside. Inside trim always free. Outside trim always rigid. Auxiliary latch deadlocks latch bolt Access Control Components by Others. M8800ELR lock is ideal to pair with a low energy power operator (by others). Special Options available: SS-Security Strikes USD K x K Upside Down (cylinder/thumb turn below knobs) USD L x L Upside Down (cylinder/thumb turn below levers)
