Dental curing light MINILED™ ORTHO 2

cordlessLED

Product

• Title: Mini LED Ortho 2
• Brand: Acteon
• Category: Polymerization (orthodontic devices)

Overview

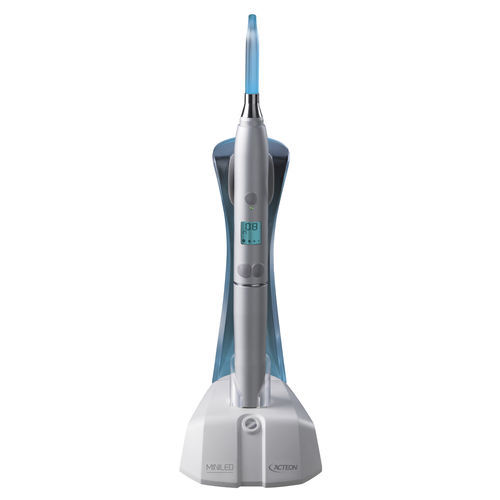

The Mini LED Ortho 2 is a handheld LED curing light designed to polymerize orthodontic adhesives and composite resins from single brackets up to a half-arch using one-button operation and short preset cycles.

Polymerization times

• Preset exposure times: 4 s, 8 s, 12 s and 32 s.
• Optimized to cure from a few brackets to a half-arch.
• Exposure times are user-customizable.

Performance and safety
Output power: 3000 mW/cm² with a broad emission spectrum suitable for common orthodontic materials. No UV emission to reduce heat generation and improve patient comfort and safety.

Durability and operator convenience
Capable of performing up to 15 consecutive treatments at full power. The base includes an integrated radiometer with a color-code light to monitor battery level in real time.

Technical specifications

• Brand: Acteon
• Commercial name: Mini LED Ortho 2
• Category: Polymerization (orthodontic devices)
• Exposure times: 4 s, 8 s, 12 s, 32 s (preset, customizable)
• Power: 3000 mW/cm²
• Emission spectrum: broad spectrum (compatible with common orthodontic materials)
• UV radiation: none
• Continuous use/autonomy: up to 15 consecutive treatments at full power
• Battery indicator: integrated radiometer with color-code
• Typical applications: curing brackets and semi-arches in orthodontics

Resources
Documentation and support materials available via the My Documentation portal.
