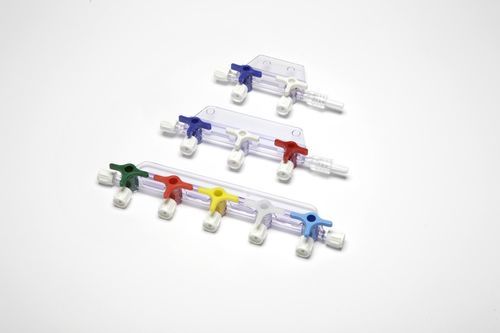

2-way infusion manifold AD series

3-way5-wayintensive care

Product
Tap manifolds for medical fluid distribution, available with optional extension tubing. Configurations with 2, 3 or 5 taps; extension tubing material: PVC DEHP FREE; tubing profile: Ø 2.5 x 4.1 mm.

Main variants

• ADRR24 Tap manifold – 2 taps
• ADRR35 Tap manifold – 3 taps
• ADRR57 Tap manifold – 5 taps

2-tap manifold with extension (AD2R series)

• AD2R007 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 7 cm
• AD2R010 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 10 cm
• AD2R025 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 25 cm
• AD2R030 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 30 cm
• AD2R050 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 50 cm
• AD2R075 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 75 cm
• AD2R080 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 80 cm
• AD2R100 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 100 cm
• AD2R150 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 150 cm
• AD2R200 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 200 cm

3-tap manifold with extension (AD3R series)

• AD3R007 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 7 cm
• AD3R010 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 10 cm
• AD3R025 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 25 cm
• AD3R030 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 30 cm
• AD3R050 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 50 cm
• AD3R075 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 75 cm
• AD3R080 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 80 cm
• AD3R100 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 100 cm
• AD3R150 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 150 cm
• AD3R200 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 200 cm

5-tap manifold with extension (AD5R series)

• AD5R007 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 7 cm
• AD5R010 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 10 cm
• AD5R025 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 25 cm
• AD5R030 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 30 cm
• AD5R050 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 50 cm
• AD5R075 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 75 cm
• AD5R080 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 80 cm
• AD5R100 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 100 cm
• AD5R150 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 150 cm
• AD5R200 Tap manifold with extension PVC DEHP FREE – Ø 2.5 x 4.1 mm – 200 cm

Technical specifications

• Extension material: PVC DEHP FREE
• Tube profile: Ø 2.5 x 4.1 mm
• Available lengths (cm): 7, 10, 25, 30, 50, 75, 80, 100, 150, 200
• Available configurations: 2 taps, 3 taps, 5 taps
• Product codes referenced: ADRR24, ADRR35, ADRR57, AD2Rxxx, AD3Rxxx, AD5Rxxx (length variations as listed)
