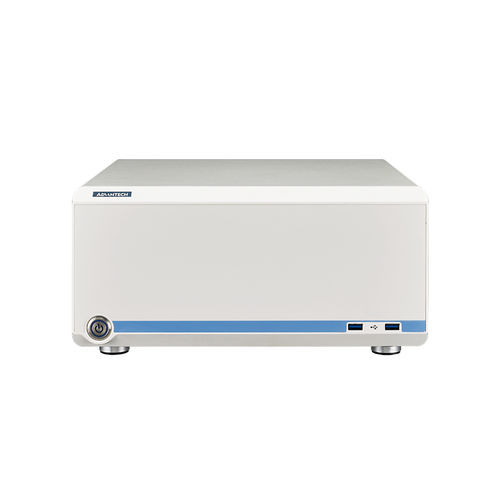

Intel® Xeon medical PC USM-500
Intel® Core i7Intel® Core i5Intel® Core i3

Intel® Xeon medical PC - USM-500 - ADVANTECH - Intel® Core i7 / Intel® Core i5 / Intel® Core i3
Intel® Xeon medical PC - USM-500 - ADVANTECH - Intel® Core i7 / Intel® Core i5 / Intel® Core i3
Add to favorites
Compare this product
Go to the ADVANTECH website for more information

Characteristics

Processor
Intel® Xeon, Intel® Core i7, Intel® Core i5, Intel® Core i3
Applications
for healthcare facilities, for medical imaging
Configuration
fixed
Technology
with artificial intelligence, AI-ready
HDD capacity
SSD 2TB
Other characteristics
HDMI, with enhanced graphics, with USB
Frequency

Max.: 4.8 GHz

Min.: 4.8 GHz

Description

Product overview
  • Professional medical mini-tower standalone computer for clinical and diagnostic workstations
  • Model: USM-500; supports Intel 12th/13th Gen processors (i3/i5/i7, TDP 65W); platform and wider generation support depend on configuration
  • Designed for hospital environments with multiple display outputs, M.2 expansion and flexible I/O
  • OS support: Windows 10 LTSC / Windows 11 / Linux; Windows Server available by project
  • Supports NVIDIA AI (Clara SDK) and WISE-Device platform


Certifications
  • CE
  • FCC
  • CCC
  • IEC/EN 60601-1 (3.2th)
  • IEC/EN 60601-1-2 (4.1th)
  • RED


Key technical highlights
  • Memory: 4 x U-DIMM, up to 128 GB DDR5 4800 MHz
  • Storage: 1 x M.2 2280 NVMe (PCIe x4) + 1 x M.2 2230 (E-key) for WiFi; optional 2 x 2.5" SATAIII drives
  • Expansion: PCIe x4 (Gen4), PCIe x8 (Gen3), PCIe x16 (Gen3)
  • I/O: HDMI 2.0a, DisplayPort, internal eDP header; total 12 USB ports (7x USB3.2 Type-A, 1x USB3.2 Type-C, 4x USB2.0)
  • Connectivity: 4x RJ-45 (LAN1: 1GbE Intel I219-LM; LAN2/3/4: 2.5GbE Intel I226LM)
  • Serial: 5x RS-232 + 1x RS-232/422/485 (auto flow control)


Technical specifications
  • Model: USM-500
  • Chipset: Intel R680E (platform-dependent; some configs reference Q370 / C246)
  • CPU support: Intel 12th/13th Gen (i3/i5/i7, TDP 65W); other Intel/Xeon generations per configuration
  • Max memory: 128 GB DDR5 (4 x U-DIMM, 4800 MHz)
  • PCIe: x4 Gen4 (4 GB/s), x8 Gen3 (8 GB/s), x16 Gen3 (16 GB/s)
  • M.2: 1 x 2280 NVMe (PCIe x4), 1 x 2230 (E-key for WiFi)
  • Storage: up to 2 x 2.5" SATAIII (up to 2 TB each by configuration)
  • Audio: Line-in / Line-out / Mic-in
  • Power: Internal PSU 100-240V AC, 47–63 Hz; max output 900W
  • Security/RAID: Software RAID 0/1/5/10; TPM 1.2 / 2.0 optional
  • Dimensions: 320 x 329.5 x 145 mm; Weight: ~10 kg
  • Warranty: 2 years


Support & Warranty
  • Technical documentation and downloads available; customization and project support on request
  • Standard 2-year warranty; extended service options available by contract
