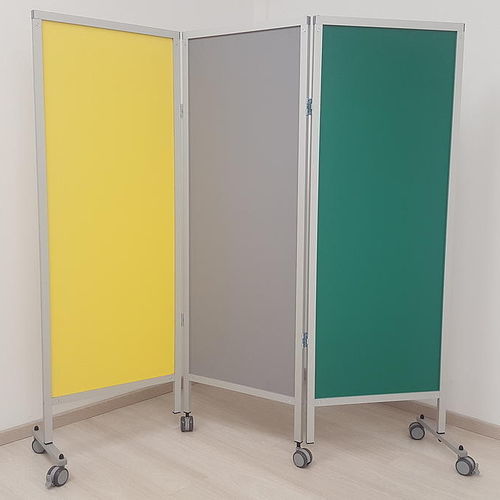

Mobile hospital screen PV-3003/LR
foldingwall-mounted3-panel

mobile hospital screen
mobile hospital screen
mobile hospital screen
mobile hospital screen
mobile hospital screen
mobile hospital screen
mobile hospital screen
Add to favorites
Compare this product


Characteristics

Ergonomics
folding, mobile, wall-mounted
Number of panels
3-panel
Other characteristics
adjustable
Height

1,745 mm
(68.7 in)

Length

1,690 mm, 1,970 mm
(66.54 in, 77.56 in)

Weight

12.7 kg, 15.4 kg
(28 lb, 34 lb)

Description

The medical screens on castors from AGA Sanitätsartikel can be used as versatile screens that can be used anywhere or as wall-mounted screens that can be pulled out or folded together. The frames of the individual folding screen panels are made of anodised aluminium rectangular tube profiles. The even, fine-celled foam structure of the 3 mm-thick PVC hard foam panels is homogeneously coloured, flame retardant, resistant to disinfectants and easy to clean. The panels are connected to one another by two galvanized folding screen hinges (can be folded down to both sides) and must be set up at an angle of 135°. With the castors, the screens have a height of 1,745 mm. The mobile screens have rotating aluminium cross arms screwed to the outer vertical struts. For stability, the two cross arms must always be aligned at a 90° angle to the screen panel when the screen is set up. The wall-mounted screens have a half panel on one side with a rail for wall mounting. On the other outer vertical strut is a bolted, rotatable aluminium cross arm. When the screen is extended, this must be at a 90° angle to the screen panel. If the wall-mountable paravent is intended as a privacy screen between two beds, for example, the half panel allows it to be mounted in the middle between the beds. Features The frame consists of anodized aluminium rectangular tube profiles, dimensions 30 x 20 x 2 mm. The inlays of the screen panels are made of 3 mm thick PVC hard foam panels. The panels must be set up at an angle of 135°, otherwise the screen could tip over and lead to the risk of breakage and injury. Castors are screwed into the adjustable feet of the individual screen panels, castors Ø 65 mm.
