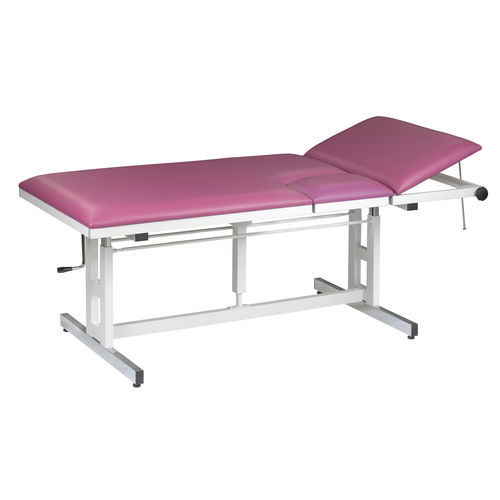

Cardiology examination table H-EKA series

for ultrasound imagingfor echocardiographymanual

Overview
The H-EKA echocardiography table with manual hand-crank height adjustment is designed for examinations that require occasional height changes or independence from mains power. Height is set via a hand crank at the foot end that can be stowed under the tabletop. The tabletop includes dedicated echo cutouts for cardiac transducer access. Available frame finishes: lacquered or chrome-plated; available widths: 650 mm and 800 mm.

Features

• Precision double square guide profiles to prevent rocking and lateral offset during height adjustment.
• Maintenance-free gearbox with transmission ratio i = 10 mm/revolution for smooth operation, even with patients up to 200 kg load capacity.
• Available widths and article numbers:
  • Width 650 mm — Article No.: H-EKA 1065/H (lacquered) and H-EKA 2065/H (chrome)
  • Width 800 mm — Article No.: H-EKA 1080/H (lacquered) and H-EKA 2080/H (chrome)
• Echo cutout sizes by table width:
  • 650 mm width — echo cutout 315 x 250 mm (L x W)
  • 800 mm width — echo cutout 405 x 300 mm (L x W)
• Gusset plates in frame corners for increased stability.
• Height-adjustment mechanism and upholstery frame profiles in lacquered blank steel; selected references available chrome-plated.
• Three upholstery segments (headrest, main surface, removable insert) each 64 mm thick.
• Chrome-plated crossbars on the flat base with levelling feet for improved resistance to external influences.
• Continuously adjustable headrest up to +40°, locked by a handle and clamping-rod mechanism.

Standard version includes

• Removable (slide-in) upholstered insert to close the echo cutout.
• Levelling feet on the chrome-plated crossbars.

Frame colours

• Light grey (RAL 7035)
• White aluminium (RAL 9006)
• Pure white (RAL 9010)

Upholstery
Artificial leather covers are tear-resistant, durable, disinfectant-resistant and easy to clean. Standard selection includes synthetic leather ranges (e.g. VOWAled Pisa). An electrically conductive black cover (MEDISTAT) with equipotential bonding socket on the frame is available as an option.

Technical table — Table width 650 mm
Article number: H-EKA 1065/H / H-EKA 2065/H
Frame: Lacquered (H-EKA 1065/H) / Chrome (H-EKA 2065/H)
Length (headrest/main surface): 1,900 mm — 500 / 1,400 mm
Width: 650 mm
Height adjustment: 650 - 850 mm (hand crank)
Upholstery segments: 3 sections
Upholstery thickness: 64 mm
Head section adjustment: +40° (clamping rods)
Echo cutout: 315 x 250 mm (L x W)
Load capacity: 200 kg

Technical table — Table width 800 mm
Article number: H-EKA 1080/H / H-EKA 2080/H
Frame: Lacquered (H-EKA 1080/H) / Chrome (H-EKA 2080/H)
Length (headrest/main surface): 1,900 mm — 500 / 1,400 mm
Width: 800 mm
Height adjustment: 650 - 850 mm (hand crank)
Upholstery segments: 3 sections
Upholstery thickness: 64 mm
Head section adjustment: +40° (clamping rods)
Echo cutout: 405 x 300 mm (L x W)
Load capacity: 200 kg

Accessories & Additional options (selection)

• Folding upholstered insert (EKA-AA) — permanently connected option for 800 mm tables (not retrofittable).
• Face cutout (oval) with upholstered insert to close the opening (approx. 205 x 105 mm / 200 x 100 mm).
• Headrest adjustment by gas spring (option) for one-hand operation (not retrofittable).
• Sets of castors: LR-75 (Ø 75 mm), LR-125 (Ø 125 mm); central locking castor system LR/Z-125 (Ø 125 mm) with diagonally arranged foot pedals (central locking not retrofittable).
• Paper roll holders for 650 mm (P-2065/A) and 800 mm (P-2080/A) widths.
• Other accessories: edge/impact protection, infusion stands, positioning aids, patient belts, surgical rails, push handles, pivoting/removable side guards, wall deflector rings.

Technical specifications

• Product family: H-EKA echocardiography tables with manual (hand crank) height adjustment
• Available widths: 650 mm and 800 mm
• Height adjustment range: 650 - 850 mm (hand crank)
• Load capacity: 200 kg
• Upholstery: 3 segments, 64 mm thickness each
• Headrest adjustment: continuous up to +40°, clamping-rod (standard) or gas spring (option)
• Echo cutout sizes: 315 x 250 mm (650 mm table) / 405 x 300 mm (800 mm table)
• Frame finishes: lacquered or chrome-plated (crossbars chrome-plated with levelling feet)
• Drive/gearbox: maintenance-free, transmission ratio i = 10 mm/revolution
