The tilt tables/standing boards KT-1080/EE and KT-10100/EE can be used for many different treatment methods. Among other things, they enable the patient to be brought continuously from the shock/lying position to an almost vertical position. These models are particularly suitable for the treatment of neurologically ill as well as head and back injuries or paraplegic patients.
A tilting table or standing board is a versatile tool for patient mobilization. They are used especially in the specialist areas of neurology, orthopedics, surgery and therapy.
In order to provide the patient with the physical and psychological security required for the treatment, a combination of the cut-out in the foot section and the extra-large, removable footrest was specially developed for these tilt tables.
The electric height and tilt adjustments are controlled by two maintenance-free and ultra-quiet motors.
The height adjustment 520 - 960 mm is done using a pneumatic foot switch.
Drive specifications 230V, 50/60Hz, 3,7A, 850W, IPX4, v=14mm/s, 7000N.
The tilt adjustment 0 - 90° is done using a pneumatic hand switch. The built-in angle indicator (protractor) ensures quick and precise reading of the tilting angle.
Drive specifications 230V, 50/60Hz, 1,8A, 360W, IPX4, v=7mm/s, 10000N.
The headrest is adjustable by grid up to +35°.
The upholstery thickness is 64 mm (Article No. KT-1080/EE) or 67 mm (Article No. KT-10100/EE).

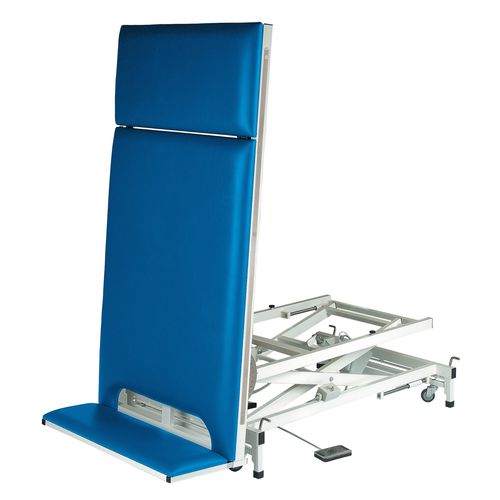

The therapy tilt table KT-1080/EE is shown in the pictures with the upholstery colour 'blue' and the frame colour 'light grey' (RAL 7035).
