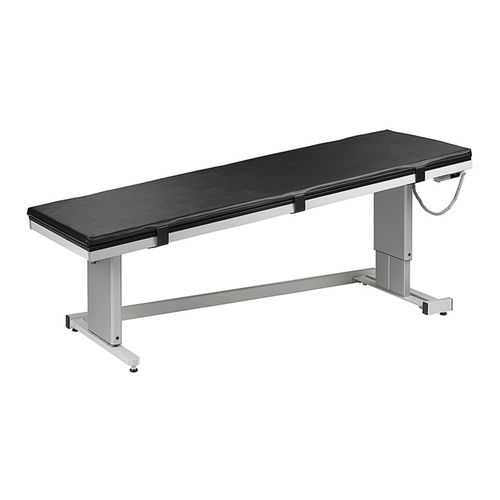

Height-adjustable X-ray table AGA-POWER-DUO-LIFT

tilting

Overview
The AGA-POWER-DUO-LIFT series from AGA Sanitätsartikel are electrically adjustable X-ray tables offering synchronized height and tilt control via a six-button multitasking hand switch. Designed for radiology rooms, the tables provide extended radiolucent areas and ergonomic adjustment for diagnostic procedures.

Available versions

• X-ray table, Article No.: RGL-1065/NEE — 650 mm wide, one-piece continuous tabletop.
• X-ray table, Article No.: RGL-1080/NEE — 800 mm wide, one-piece continuous tabletop.
• X-ray table, Article No.: RGL-1065/NKEE — 650 mm wide, two-piece tabletop with headrest grid adjustment (13 locking steps).
• X-ray table, Article No.: RGL-1080/NKEE — 800 mm wide, two-piece tabletop with headrest grid adjustment (13 locking steps).

Features

• Radiolucent black support plates made of regenerated PE-1000: thickness 15 mm (650 mm table) and 25 mm (800 mm table).
• Base frame supplied with levelling feet for high stability; optional castor sets and central-lock castors available.
• Electromotive height adjustment approx. 550–800 mm (per motor unit).
• No metal parts in the radiolucent area between lifting columns (approx. 1,300 x 600 mm for 650 mm table; 1,300 x 750 mm for 800 mm table).
• Headrest adjustable in 13 locking steps up to +30°; position selectable left or right (default: right).
• Two low-voltage electric lifting columns in anodized light metal; controlled by transformer and hand switch. Connection per motor: 230 V, 50/60 Hz, 6.0 A, 240 W, IPX6, v ≈ 16 mm/s, 2 x 1,000 N.
• Electromotive Trendelenburg / Anti-Trendelenburg: 11° each.
• Multitasking hand switch with six buttons allows simultaneous height and tilt control.

Technical data

• Series / Model: AGA-POWER-DUO-LIFT.
• Article numbers: RGL-1065/NEE, RGL-1080/NEE, RGL-1065/NKEE, RGL-1080/NKEE.
• Length: 1,900 mm.
• Widths: 650 mm / 800 mm.
• Height adjustment (electric): approx. 550–800 mm.
• Tilt (Trendelenburg / Anti): ±11° (electromotive).
• Support plate material: regenerated PE-1000; thickness 15 mm (650 mm) / 25 mm (800 mm).
• Radiolucent area: 1,300 x 600 mm (650 mm) / 1,300 x 750 mm (800 mm).
• Tabletop variants: 1-section or 2-section (500 / 1,400 mm) with headrest adjustable in 13 locking steps up to +30°.
• Load capacity: 150 kg.
• Drive per motor unit: 230 V, 50/60 Hz, 6.0 A, 240 W, IPX6, speed ≈ 16 mm/s, 2 x 1,000 N.

Standard configuration

• Hand switch with spiral cable and six buttons for height and tilt operation.
• Transformer control and hand switch holder on the right-hand side (standard delivery position).
• Base frame with levelling feet.

Accessories and options

• Upholstered pads: PAL-190-65 (for 650 mm) and PAL-190-80 (for 800 mm); 40 mm thickness, fixed under the tabletop with straps and Velcro; multiple upholstery colours available.
• Castor sets: LR-75 (Ø 75 mm) and LR-125 (Ø 125 mm) for selectable total table height ranges; specify total height with castors when ordering.
• Central locking castor system LR/Z-125 (double swivel castors Ø 125 mm) with diagonal foot pedals — for specific height ranges; not retrofittable.
• Standard rails (pairs) OPS-40/A, OPS-60/A, OPS-100/A, OPS-140/A, OPS-170/A (CrNi steel) for mounting accessories and lower-body radiation protection curtains; approx. 25 x 10 mm.
• Surgical standard rails pair OPS-170/A (1,700 mm) and paper roll holder P-2065/A (foot end) as shown in some variants.
