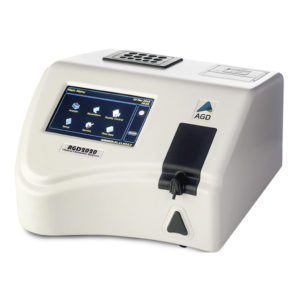

Automatic clinical chemistry analyzer AGD2020

for clinical diagnosticbenchtopcompact

AGD Biomedicals’ experience and understanding of laboratory needs has led to an innovative product developed with one key objective – provide excellent Chemistry Analyzer, resulting in the ultimate customer satisfaction . AGD2020 is a compact, convenient , new generation analyzer most suitable for medium and small sized laboratories, also as a backup for large laboratories or hospitals . Touchscreen Display Online Graphics Collated Patients Reports L-J Chart for Quality Control TECHNICAL SPECIFICATIONS Assay Types - Absorbance, End point, Kinetic, Fixed Time,Endpoint with Sample Blank and Coagulation Wavelengths - Interference Filters 340, 405, 450, 505, 546, 578, 630 and 670nm Bandwidth - 10 ±2nm Absorbance Range - -0.1 to 3.000 Abs Flow Cell - 18 µL Aspiration Volume - 300 to 1000µL by specially designed Peristaltic Pump Cuvette - Semi Micro Cuvette Cuvette Volume - 500 µL Memory - 196 programs, 5000 test records with Reaction Curve Light Source - 6V/10W, Tungsten Halogen Lamp Temperature Control - 25, 30 & 37° C by Peltier Effect Quality Control - L-J Plot of Tri-level control with daily and monthly data Display - 7″ Graphic Colour LCD with resistive touchscreen Resolution : 800 x 480 pixels Built-in Printer - 2″ Graphic Thermal Printer (can be switched ON/OFF, when desired) Interface - Two USB ports for External Keyboard / Mouse Power Consumption - 50 Watts Power Supply - 100 to 240 VAC ±10%, 50/60 Hz Operating Condition - Temp: 15°C to 40°C Relative Humidity: up to 85% Storage Condition - 10°C to 40°C, Altitude: Below 3000 Meter
