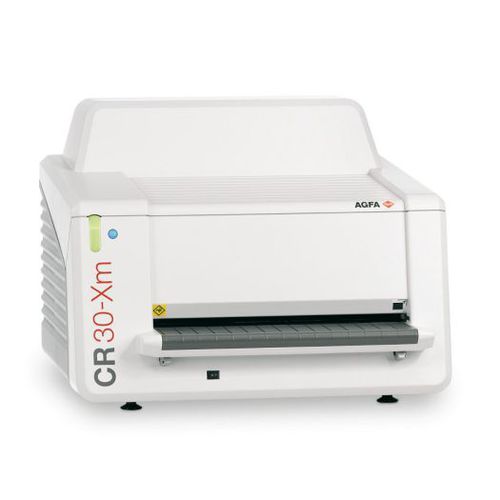

Mammography CR scanner CR 30-Xm

Overview
A compact single‑slot table‑top computed radiography digitizer designed for both digital mammography and general radiography. Delivers a primary pixel pitch of 50 μm with a high‑resolution mode equivalent to 20 pixels/mm, and includes SmartRotate™ AI to standardize image presentation regardless of cassette orientation.

Key benefits

• Multi‑application: supports dedicated mammography and general radiography workflows, including full‑leg and full‑spine studies.
• High spatial resolution (50 μm / high‑res mode 20 px/mm) for improved visualization of small and subtle breast lesions.
• SmartRotate™ AI for automatic correction of image orientation, reducing manual handling and review time.
• Horizontal cassette insertion minimizes dust ingress, helping maintain operational reliability in clinical environments.
• Table‑top, single‑slot form factor suitable for smaller hospitals, clinics and practices transitioning from analog to digital.
• Compatible with mammography plates and cassettes to enable tissue imaging up to the chest wall.

Solution integration
Integrates with MUSICA™ image processing (including MUSICA™ for Mammography), MUSICA™ acquisition workstation, DRYSTAR AXYS hardcopy printers and XpertSuite™ software (mammography option) to provide a complete digital mammography and general radiology workflow.

Availability note
CR 30‑Xm is not available in the US and Canada.

Technical specifications

• Model: CR 30‑Xm
• Type: single‑slot table‑top computed radiography digitizer
• Primary resolution / pixel pitch: 50 μm
• High resolution mode: equivalent to 20 pixels/mm
• Supported mammography cassette sizes: 18 cm × 24 cm and 24 cm × 30 cm
• Applications: digital mammography and general radiography (including full‑leg / full‑spine)
• AI feature: SmartRotate™ for automatic image orientation
• Cassette insertion: horizontal to reduce dust/dirt ingress
• Tissue coverage: supports imaging to the chest wall with dedicated mammography plates
• Integration: compatible with MUSICA™, MUSICA™ workstation, DRYSTAR AXYS and XpertSuite™
