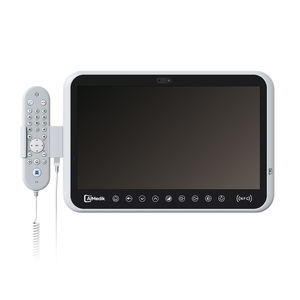

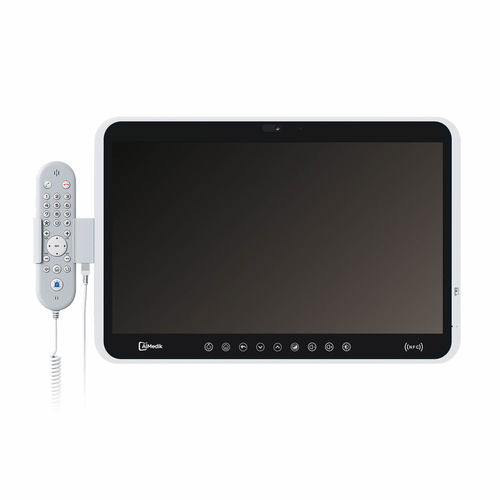

Waterproof patient infotainment terminal MT21

antibacterialtouch screenAndroid

Short description
The MT21 bedside infotainment terminal is a medical-grade touch-screen station for hospitals and clinics. It integrates a computer, TV, phone/handset interface, nurse call and patient services in a single 21.5″ unit that supports real-time bedside record access, ward communication and patient teleconsultation.

Main features

• 21.5″ IPS LCD, 1920×1080, 500 cd/m²
• 10-point capacitive multi-touch with anti-bacterial/antiviral coating; supports gloved and wet-hand operation
• IP65 front panel and anti-bacterial housing suitable for clinical cleaning
• Qualcomm ARM Kryo™260 octa-core processor; Adreno™ GPU
• Android 13; 4 GB RAM + 64 GB UFS (8 GB + 128 GB optional)
• Integrated 16 MP CMOS front camera with sliding privacy cover and reading light
• Connectivity: WiFi 802.11 a/b/g/n/ac (2.4/5 GHz), Bluetooth 5.0, optional 4G, optional RFID/NFC
• I/O: Earphone, handset jack, USB Host, USB-C, Micro SD, Nano SIM, HDMI In, RS232, RJ45 (PoE++ optional)
• Certifications: IEC 60601-1, EN 60601-1, ISO 22196, CE, FCC

Ergonomics and hygiene
The MT21 front panel and housing are designed for clinical environments: IP65-rated front enables use of antibacterial detergents; the capacitive touch supports operation with various medical gloves (latex, nitrile, PVC, cotton) and wet hands to reduce glove removal and contamination risk.

Teleconsultation
Equipped with a 16 MP camera, slideable cover and microphone, the terminal enables secure video consultations, live remote assessment and integration with ward communication systems for clinician–patient interaction.

Projection and multimedia
The terminal supports wireless screen projection from mobile devices and HDMI input for external sources, enabling patient entertainment, information display and multimedia sharing from bedside.

Technical specifications
SYSTEM - Processor - Qualcomm ARM KryoTM260, Octa-core 64bit
- GPU - Adreno TM 610
- RAM - 4 GB DDR4 (default) / 8 GB (optional)
- ROM - 64 GB UFS (default) / 128 GB (optional)
- OS - Android 13
DISPLAY - Resolution - 1920(H)x1080(V)
- Panel - 21.5" IPS
- Brightness - 500 cd/m²
- Contrast - 1000:1
- Viewing angle - 89/89 (L/R), 89/89 (U/D)
- Touch - 10-point capacitive multi-touch
FUNCTION - WiFi - IEEE 802.11 a/b/g/n/ac 2.4/5GHz
- Bluetooth - Bluetooth 5.0
- 3G/4G - Optional support
- RFID - Combo smart card & Mifare (optional)
- Camera - 16 MP CMOS front camera with sliding cover
- Handset - Optional full-function handset with remote control
- Audio - Speakers 6Ω/2W x2; internal microphone; multiple codecs supported
INTERFACE - I/O - Earphone x2; Handset jack x1; USB Host 2.0 x2; USB-C x1; Micro SD x1; Nano SIM x1; HDMI In x1; RS232 x1; RJ45 100M x1 (PoE++ optional)
OTHER - Power - DC 9–36V, ≤28W (PoE++ 60W optional)
- Operating temp. - 0°C to +50°C
- Storage temp. - -20°C to +60°C
- Dimensions - 533.9 × 349.4 × 45.5 mm
- Weight - 4.6 kg (without handset); 5.1 kg (with handset)
- Certifications - IEC 60601-1, EN 60601-1, CE, FCC, ISO 22196

Model summary

• Model: MT21
• Display: 21.5" IPS 1920×1080
• Touch: 10-point capacitive, glove & wet-hand support
• Memory: 4 GB / 64 GB (8 GB / 128 GB optional)
• Camera: 16 MP front with privacy cover
• Connectivity: WiFi, Bluetooth 5.0, optional 4G, optional RFID/NFC
• Front rating: IP65; antibacterial housing; medical certifications
