Teleconsultation video camera AP series

monitoringfor patient monitoringmedical

Overview

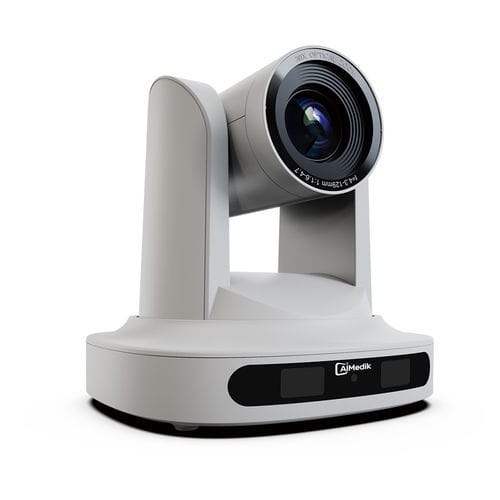

Full HD PTZ camera designed for medical environments (tele-ICU, telehealth conferencing and patient monitoring). Equipped with a 1/2.8" HD CMOS sensor and available in 20× (AP20) or 30× (AP30) optical zoom to deliver accurate clinical imaging. Remote Pan/Tilt/Zoom control via IR remote, Web UI or serial/IP interfaces; supports multiple streaming protocols for telehealth integration.

Key features

• Cross-protocol control: IP / RS-422 / RS-485 / RS-232
• 1/2.8" HD CMOS sensor with 20× or 30× optical zoom
• Video outputs: HDMI & 3G‑SDI; simultaneous FHD 1080p output
• PoE support; optional NDI|HX on NDI variants
• Serial control with cascading: RS-232 / RS-485
• Streaming protocols: RTSP, RTMP, SRT (NDI|HX optional)
• Control protocols: ONVIF, VISCA over IP, VISCA, PELCO‑D / P
• Flexible mounting: tripod, wall and ceiling; image flip function

Detailed description

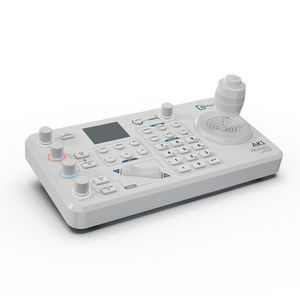

Multiple outputs (SDI, HDMI, IP) enable simultaneous Full HD 1080p feeds. LAN supports Power over Ethernet (PoE), optional NDI|HX and IP streaming via RTSP/RTMP/SRT. Audio line‑in is provided for NDI/IP streams. Camera control available via LAN or RS‑232/RS‑485 serial ports and compatible with IR remote, Web UI and joystick controllers.

Zoom and image control: Available with 20× (AP20) or 30× (AP30) optical zoom for close‑up clinical inspection and wide‑angle overview. Fast pan/tilt response and image adjustments (brightness, color, saturation, contrast, sharpness) enable precise visual monitoring.

Installation & operation: Supports image flip and multiple mounting options (tripod, wall, ceiling). Commonly deployed in telehealth conferencing, tele‑ICU monitoring and other clinical observation scenarios.

Technical specifications

• Model No.: AP20 / AP30 (AP20‑NDI / AP30‑NDI variants)
• Video Out: SDI, HDMI (up to 1080P60)
• LAN / IP Streaming: RTSP, RTMP, SRT (NDI|HX optional)
• PoE: Supported (NDI variants support NDI|HX)
• Audio Input: 3.5 mm line‑level
• Control Interface: RS‑232 In/Out, RS‑485 In, LAN (VISCA over IP)
• Control Protocols: ONVIF, VISCA over IP, VISCA, Pelco‑D / Pelco‑P
• Optical Zoom: 20× (AP20) / 30× (AP30); Digital Zoom: 10×
• Focal Length: AP20 F = 5.5 ~ 110 mm; AP30 F = 4.3 ~ 129 mm
• View Angle: Tele 3.3° (AP20) / 2.34° (AP30); Wide 54.7° (AP20) / 65.1° (AP30)
• Aperture: AP20 F1.6 ~ F3.5; AP30 F1.6 ~ F4.7
• Sensor: 1/2.8" HD CMOS, Effective pixels 2.07 MP (16:9)
• Minimum Illumination: 0.5 Lux (F1.8, AGC ON)
• DNR: 2D & 3D DNR; SNR: >55 dB
• PTZ Range: Pan ±170°, Tilt -30° ~ +90°; Presets: 255 (10 via remote)
• Power: DC 12V ±10% / Power Consumption: 12 W (Max); PoE supported
• Operating Temperature: -10 ~ +50 °C; Storage: -10 ~ +60 °C
• Dimensions: 170 × 170 × 180.31 mm; Net weight: 1.25 kg; Gross: 2.1 kg
• Accessories: Power supply, RS‑232 control cable, remote control, manual
