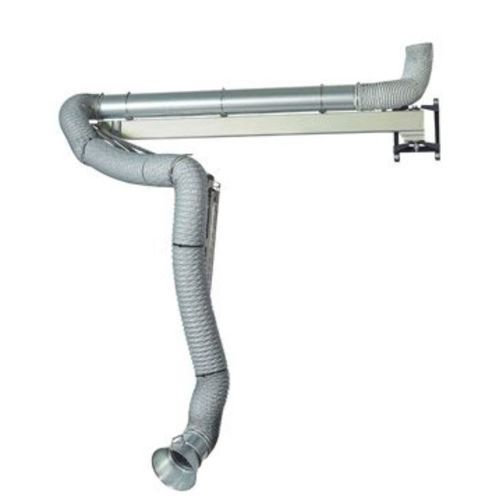

Extraction arm for the pharmaceutical industry FLEX-H

for smokefor polluantflexible

A competitive and efficient solution for those in need of extracting fumes, dusts, vapours and generic pollutants with occasional frequency. Availability of special ATEX II 2 DG and STAINLESS STEEL AISI 316 versions. Can be mounted with a dedicated JIB extension of the EHB series. Available for both hanging and standing mounting. Designed for extraction of generic pollutants in the presence of simple applications and manufacturing processes or for non-intensive/occasional use. As compared to the FLEX-K arm (EK series), the FLEX-H extraction arm (EH series) has the advantage of having the support structure with a single pantograph completely external to the flexible tubing, with a reduction of the pressure drops,(i.e. the energy required for the air extraction). Available in 100-125-160 mm diameter and with a length of 2, 3 and 4 meters. The FLEX-H arm (EH series) is used for applications and general processing of mild intensity within the Aeronautical and Aerospace industry, in the automotive sector, in the food industry and in most industrial sectors for the localized extraction of general pollutants in small or modest amounts. The rotation of the FLEX-H (EH series) extraction arm is obtained by exploiting the capacity of the flexible tubing to consent to a modest axial torsion thereby allowing the elimination of the “pivoting base” present in all other types of extraction arms. The flexible tubing is mounted on the arm and is directly connected to the centralized system’s tubing.
