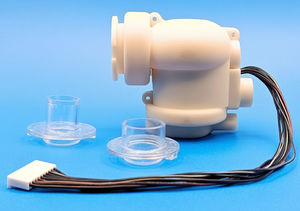

Intensive care ventilator centrifugal blower MFA0248 Blower avec amortisseurs 70hPA / O2 compatible

emergencyhome careclinical

This high-performance blower offers an optimal balance between efficiency and cost.

It combines our patented motor-cooling technology with a specially designed casing featuring integrated dampers for vibration reduction.

A balanced performance-cost blower combining our patented technology for motor cooling integrated inside a specific casing with dampers.

This model is designed to benefit from standard pressure performance ratio and together with easy integration thanks to the anti vibration casing.

Key Performance Benefits

• Pressure range up to 65 hPa at 80 l/mn
• Blending air-oxygen through the turbine producing a full homogeneous gas
• Integration with anti-vibration casing (blower with dampers) and reduced dimensions
• Specific compressor architecture with a patented motor cooling system fully independent from the patient air flow - 100% O2 safe
• Reliability of the system with patient support 24/7 and 365 days

Technical Highlights

• Dynamic (rise time) : < 86 ms @ 10A max - from 5 to 60 hPa @30 l/mn
• Noise level : < 52 dBa @ 30 hPa - @1m from air inlet
• Power consumption : 11.3 W @ 30 hPa @ 30 l/mn
• LifeTime : > 40 000 hours at standard operating conditions

OPTIONS

• Connector (22Ø ISO5356-1) or additional auxilairy ports male, female or female with auxiliary ports
• Motor connexion wire length of 150mm (standard) or custom with specific request
• Possibility to customize the label (QR code available on request)

Please contact us if you have any questions or specific requests regarding this product
