Pediatric breathing circuit RS-D000002

disposable

Product overview

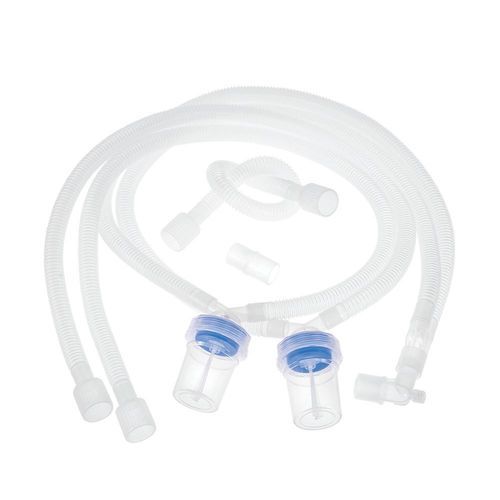

The disposable breathing circuit is a single-use respiratory consumable composed of two medical‑grade PVC tubes and a Y‑connector. A condensation-type version includes a condensation cup. Variants are available for CoughAssist single tubing in mask and bite-type configurations.

Key features

• Single‑use circuit made from medical‑grade PVC respiratory tubing
• Two‑tube configuration with integrated Y‑connector for patient interface
• Condensation option: condensation cup included in condensation‑type version
• Standard 22 mm connections facilitating compatibility with common ventilators and anesthesia machines
• Designed for easy assembly and disassembly to simplify setup and maintenance

Technical specifications

• Reference (example): RS-D000002
• Applicable: Pediatric (example reference)
• Length: 1.8 m (reference RS-D000002)
• Y‑piece connectors: 22M/15F
• Machine connection: 22F
• Adaptor: 90° elbow connector with CO2 port
• Water trap: Pediatric
• Material: Medical‑grade PVC respiratory tubes
• Available types: Mask type and bite‑type (CoughAssist Single Tubing variants)

Applications and compatibility

• Intended settings: hospitals, clinics, home care
• Compatible with equipment using standard 22 mm fittings (ventilators, anesthesia machines, resuscitators)
• Suitable for CoughAssist single tubing applications and routine respiratory therapy workflows

Handling, assembly and ordering

• Simple design for quick assembly/disassembly to improve clinical workflow
• Single‑use product — follow local infection control and disposal protocols
• For ordering, reference the REF (e.g. RS-D000002) and required variant (condensation or non‑condensation, mask or bite‑type)
