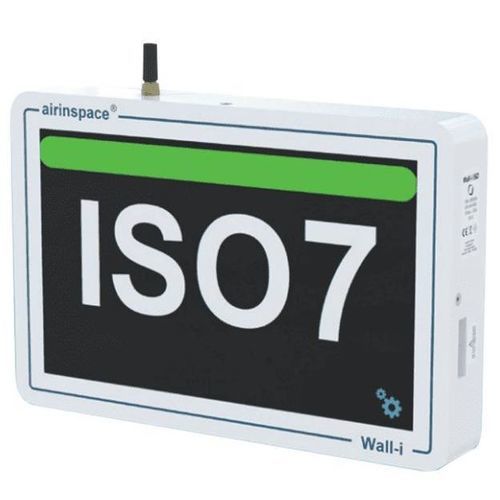

Hospital monitoring system Wall-i ISO

air qualitywall-mountedreal-time

Overview
Wall-i ISO is a wall-mounted particulate counter designed to continuously monitor indoor air quality in isolation rooms and other controlled environments. It provides particle counting by size channel and displays the ISO particulate cleanliness class, with data refreshed every 10 seconds. When measured concentrations exceed predefined thresholds, the device indicates the new particulate class and changes the colour of the control strip to signal deterioration. The system can be integrated with professional air purification or HVAC processes to support corrective actions.

Applications

• Protected environments and high-risk units in hospitals
• Laboratories
• Dental practices
• Office areas requiring air-quality oversight

Key benefits

• Continuous, real-time monitoring of particulate air quality
• Measurement by size channel and indication of ISO particulate cleanliness class
• Data refresh every 10 seconds for up-to-date visibility
• Visual notification when thresholds are exceeded (particulate class display and control-strip colour change)
• Rapid wall-mounted installation
• Supports notification and verification of air handling and purification performance

Standards
ISO 9001

Technical specifications

• Model / commercial name: Wall-i ISO
• Brand: Airinspace
• Type: Isolation room air quality monitor / Wall-mounted smart particulate detector
• Particle sizes measured: 0.3 µm, 0.5 µm, 1.0 µm, 2.5 µm, 5.0 µm and 10 µm
• Counting / display modes: particle counting by size channel and ISO particulate cleanliness class
• Data update interval: every 10 seconds
• Notification: displays new particulate class and changes control-strip colour when defined thresholds are exceeded
• Dimensions: H 193 mm x L 247.5 mm x D 36.5 mm
• Standards: ISO 9001
