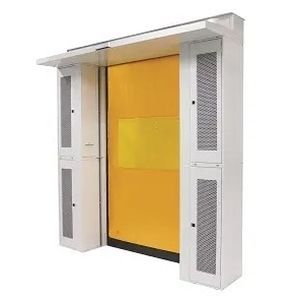

Cleanroom air curtain AAC-20257 series

wall-mountedhorizontal

Product application
Pest-control air curtains create an air barrier with high-speed airflow to prevent insect ingress and reduce foreign object contamination in manufacturing processes such as food and pharmaceutical industries. Units can be designed and manufactured to match existing openings. A version with an integrated sheet shutter is available.

Product highlights

• Prevents insect entry at openings using an unbalanced airflow from both sides (patented).
• Custom-designed to fit opening dimensions.
• High-speed sheet-shutter type provides increased pest-control effectiveness; airflow and sheet shutter operate in sync.

Specifications — Slim pest-control air curtain
Model: AAC-20257C
Dust collection element: Saran net
Airflow: High side: approx. 105 m³/min, Low side: approx. 130 m³/min
Discharge velocity: High side: approx. 25 m/s, Low side: approx. 12 m/s
Noise level: approx. 83 dBA
Power supply: AC200 3Φ 50/60Hz
Power consumption: approx. 2,700 W
Installed capacity: approx. 5,300 VA (leakage current ≤ 8 mA)
Blowers: LNF-6D × 8 (DC brushless turbo fan)
Weight: approx. 300 kg
Construction: Body: steel plate, baked paint finish

Specifications — Sheet-shutter pest-control air curtain
Model: AAC-20257M
Dust collection element: Saran net
Airflow: High side: 105 m³/min, Low side: 130 m³/min
Discharge velocity: High side: approx. 25 m/s, Low side: approx. 12 m/s
Noise level: approx. 83 dBA
Power supply: AC200 3Φ 50/60Hz
Power consumption: approx. 4,280 W (including sheet shutter)
Installed capacity: approx. 8,900 VA (leakage current ≤ 9 mA)
Blowers: LNF-6D × 8 (DC brushless turbo fan)
Weight: approx. 355 kg
Construction: Body: steel plate, baked paint finish; Sheet shutter: polyester sheet

Other features
Related video: Effectiveness of the pest-control air curtain (airflow simulation of the unbalanced airflow method, duration: 1 min 03 sec)

Key features / technical specifications (summary)

• Models: AAC-20257C, AAC-20257M (collectively: AAC-20257 series)
• Dust collection element: Saran net
• Airflow: High side ~105 m³/min, Low side ~130 m³/min (values vary by model)
• Discharge velocity: High side ~25 m/s, Low side ~12 m/s
• Noise level: approx. 83 dBA
• Power supply: AC200 three-phase 50/60Hz
• Power consumption: approx. 2,700 W (slim), approx. 4,280 W (sheet-shutter)
• Installed capacity: approx. 5,300 VA (slim), approx. 8,900 VA (sheet-shutter)
• Blowers: LNF-6D × 8 (DC brushless turbo fan)
• Weight: approx. 300 kg (slim), approx. 355 kg (sheet-shutter)
• Construction: Body: steel plate, baked paint finish; Sheet shutter: polyester sheet (where applicable)
