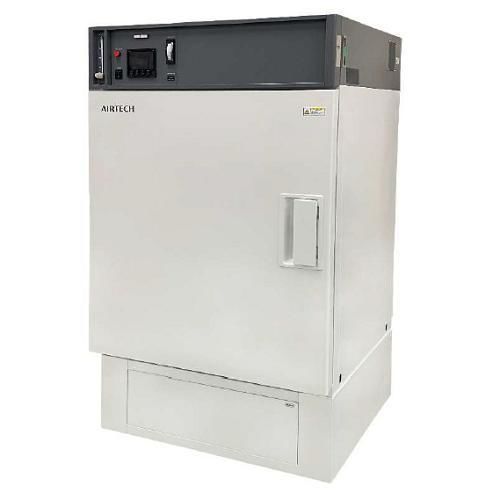

Heating oven AHO-530dryingfor cleanroomsforced air
Add to favorites
Compare this product
Characteristics
- Function
- heating, drying
- Applications
- for cleanrooms
- Type
- forced air, hot air, forced convection
- Sterilization chamber material
- stainless steel
- Temperature control
- ventilated, with ventilation system
- Configuration
- floor-standing
- Temperature range
Max.: 200 °C
(392 °F)Min.: 0 °C
(32 °F)
Description
Product application
Clean oven equipped with a high-temperature HEPA filter to maintain chamber cleanliness at elevated temperatures. Chamber setpoint range: (ambient + 60)°C to 200°C. High-temperature clean air is blown from the chamber rear and circulated. Intended for drying and baking of parts and jigs.
Key points
Specifications
Model: AHO-530
Cleanliness: ISO5 (Class 100) — measured at stabilized temperature by overall efficiency
Collection efficiency: ≥99.97% for 0.3 μm particles
Filter elements: Main filter: high-temperature HEPA filter
Pre-filter: stainless steel
Chamber internal dimensions (mm): W580 × D580 × H530 (excluding projections)
Chamber temperature: Ambient+60°C to 200°C
Temperature uniformity: ±2°C (at 200°C)
Power supply: AC200V 3Φ 50/60Hz
Installed power: Max approx. 8,000 VA
Weight: Approx. 220 kg
Construction: Body: painted steel
Chamber & shelves: stainless steel (SUS436)
External dimensions (mm): W770 × D1,025 × H1,597
Other: Power cable outside unit 2 m (mating/connection shape to be discussed)
Features / technical specifications
Clean oven equipped with a high-temperature HEPA filter to maintain chamber cleanliness at elevated temperatures. Chamber setpoint range: (ambient + 60)°C to 200°C. High-temperature clean air is blown from the chamber rear and circulated. Intended for drying and baking of parts and jigs.
Key points
- Built-in high-temperature HEPA filter to maintain chamber cleanliness.
- Chamber temperature adjustable between ambient+60°C and 200°C.
- Temperature controller supports step heating operations rather than a single-step ramp to target temperature.
Specifications
Model: AHO-530
Cleanliness: ISO5 (Class 100) — measured at stabilized temperature by overall efficiency
Collection efficiency: ≥99.97% for 0.3 μm particles
Filter elements: Main filter: high-temperature HEPA filter
Pre-filter: stainless steel
Chamber internal dimensions (mm): W580 × D580 × H530 (excluding projections)
Chamber temperature: Ambient+60°C to 200°C
Temperature uniformity: ±2°C (at 200°C)
Power supply: AC200V 3Φ 50/60Hz
Installed power: Max approx. 8,000 VA
Weight: Approx. 220 kg
Construction: Body: painted steel
Chamber & shelves: stainless steel (SUS436)
External dimensions (mm): W770 × D1,025 × H1,597
Other: Power cable outside unit 2 m (mating/connection shape to be discussed)
Features / technical specifications
- Model: AHO-530
- Cleanliness: ISO5 (Class 100) (measured at stabilized temperature by overall efficiency)
- Collection efficiency: ≥99.97% for 0.3 μm particles
- Filter elements: High-temperature HEPA (main), stainless steel pre-filter
- Chamber internal dimensions (mm): W580 × D580 × H530 (excluding projections)
- Chamber temperature: Ambient+60°C to 200°C
- Temperature uniformity: ±2°C (at 200°C)
- Power supply: AC200V 3Φ 50/60Hz
- Installed power: Max approx. 8,000 VA
- Weight: Approx. 220 kg
- Construction: Painted steel body; chamber and shelves stainless steel (SUS436)
- External dimensions (mm): W770 × D1,025 × H1,597
- Other: Power cable outside unit 2 m (connection details to be agreed)
