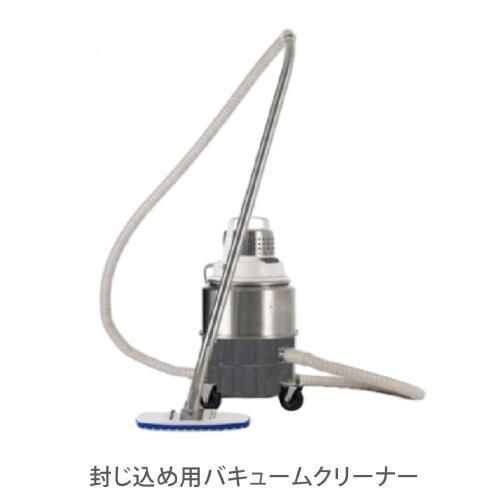

Vacuum cleaner for the pharmaceutical industry GM80P

for industrial applicationsfor laboratorycompact

Intended use

• Containment vacuum cleaner Designed to protect operators from hazardous, high-activity substances. Collected material is contained within a HEPA-equipped safe pack for secure, simple disposal.
• Cleanroom vacuum cleaner Lightweight and easy to handle. Reliable and high-performance solution for production lines, chemical/pharmaceutical plants and hospital cleanrooms.

Key features

• Selectable HEPA or ULPA exhaust filter depending on application.
• Proprietary 4-stage filtration

  • 1) Dust bag
  • 2) Microfilter
  • 3) Main filter
  • 4) HEPA/ULPA filter
  Suction velocity inside hose: greater than 24 m/s. Filter face velocity: 0.1 m/s. Exhaust velocity at 1 m from unit: less than 1 m/s (designed to avoid turbulence).
• Safe-pack disposal system: dust bag and HEPA filter fully sealed in an ABS case for safe disposal without direct contact.
• ULPA exhaust option available to minimize particle release into the cleanroom.

Specifications
Cleanroom vacuum cleaner GM80P (HEPA)
Model: GM80P (HEPA)
Collection efficiency: ≥99.99% at 0.3 µm
Tank capacity: 12.5 L
Dust pack capacity: 6.5 L
Power supply: AC100V 1φ 50/60Hz
Power consumption: 850 W
Weight: 6.8 kg
Dimensions (W×D×H mm): 300×390×530
Note: ULPA version available (GM80P-ULPA) for higher filtration efficiency.

Containment vacuum cleaner IVT 1000CR SAFE PACK-M
Model: IVT 1000CR SAFE PACK-M
Collection efficiency: ≥99.999% at 0.1 µm
Power supply: AC100V 1φ 50/60Hz
Power consumption: 1,100 W
Weight: 9.2 kg
Safe pack capacity: 6.5 L
Dimensions (W×D×H mm): 300×300×700

Features / Technical summary

• Filter configuration: 4-stage filtration (dust bag, microfilter, main filter, HEPA/ULPA).
• Suction velocity (inside hose): greater than 24 m/s.
• Filter face velocity: 0.1 m/s.
• Exhaust velocity at 1 m from unit: less than 1 m/s to prevent turbulence.
• GM80P (HEPA): ≥99.99% at 0.3 µm, tank 12.5 L, dust pack 6.5 L, 850 W, weight 6.8 kg, dimensions W300×D390×H530 mm.
• GM80P-ULPA available for higher efficiency.
• IVT 1000CR SAFE PACK-M: ≥99.999% at 0.1 µm, safe pack 6.5 L, 1,100 W, weight 9.2 kg, dimensions W300×D300×H700 mm.
• Safe-pack system: dust bag and HEPA sealed in ABS case for safe disposal.
