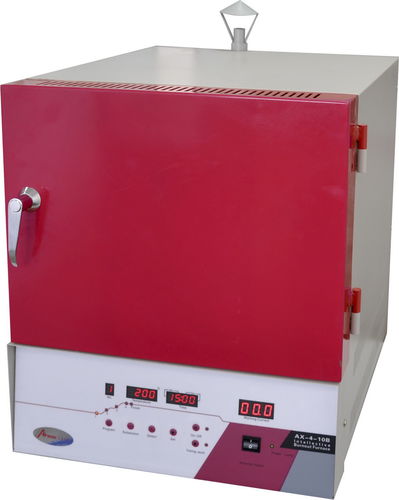

Preheating furnace AX-4-10B
burnoutfor dental laboratoriesceramic

preheating furnace
preheating furnace
Add to favorites
Compare this product


Characteristics

Function
preheating, burnout
Applications
for dental laboratories
Designed for
ceramic
Configuration
benchtop
Temperature range

Min.: 0 °C
(32 °F)

Max.: 950 °C
(1,742 °F)

Description

Item AX-4-10B Burnout Furnace (Intelligent) Article Number MW01004 Certification ISO9001:2000 Approved Purpose This unit is used for the wax elimination of casting rings and preheating the crucible in dental laboratory. Description The AX-4-10B Burnout Furnace was developed in 2008. Comparing to conventional materials, the ceramic fiber furnace walls allows quick heat rise and cooling, only 15 minutes is needed for the temperature to reach 950°C. The furnace door is made of light-weight refractory materials. It also features automatic control system, smooth door movement and excellent thermal insulation performance. The automatic control system of the fan ensures a clean working environment. Technical Data Power Supply: 220V/110V 50/60Hz Power Consumption: 4,000W Temperature Rating: 950℃ Heating Elements: Ceramic Fiber Capacity: Large Casting Rings x 7 or Large Casting Rings x 4 and Small Casting Rings x 4 Chamber Size: 12 × 30 × 20cm (H W D) Dimensions: 70cm x 64cm x 47cm (H W D) Shipping Dimensions: 74cm x 72cm x 55cm (H W D) Weight: 65kg
