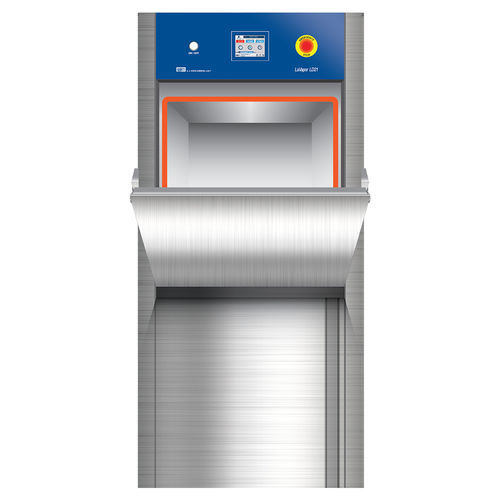

Bedpan washer-disinfector LAVAPOR LD 21

for the medical sectorfloor-standingautomatic

Overview
The LAVAPOR LD 21 is a washer-disinfector designed for safe, ergonomic cleaning and thermal disinfection of bedpans, urine and suction bottles and small utensils in healthcare environments. The unit combines automated handling with steam thermal disinfection to reduce cross-infection risk while optimising water and energy use.

Features

• Fully automatic door opening and closing
• Automatic bedpan content disposal
• Intuitive operator interface
• Cold and hot water washing followed by steam thermal disinfection
• Large internal washing capacity
• Utensils pre-washing function
• Cycle control by integrated microcomputer
• Detergent dosing pump
• Safety-stop system in case of door obstruction
• Water and energy consumption optimisation
• Washing chamber and body in AISI 304 stainless steel
• Equipment fully built in stainless steel, free of ferrous materials

Accessories

• Accessory for saddle-type bedpans
• Accessory for slipper-type bedpans
• Three support accessories for urine and suction bottles
• Support basket for washing and disinfecting small utensils
• Dryer-dedicated pump (optional)

Programs/Cycles

• Washing of urine / suction bottles: Normal
• Washing of urine / suction bottles: Economic
• Washing of urine / suction bottles: Intensive

External network connections
Network | Features
ELECTRIC: 3 ~ + N + G 400/230 V 50 Hz 13 kW
COLD WATER: Pressure max. 6 Bar; Pressure min. 3 Bar; 3/4” BSP connection
HOT WATER (max.65ºC): Pressure max. 6 Bar; Pressure min. 3 Bar; 3/4” BSP connection
DRAIN: Material resistant to 50 ºC; 110 mm connection

Technical specifications

• Model (example): 70.112.80 — Washing chamber dimensions (LxHxD): 70 x 112 x 80 cm — Exterior dimensions (LxHxD): 70 x 112 x 80 cm — Construction material: AISI 304 stainless steel
