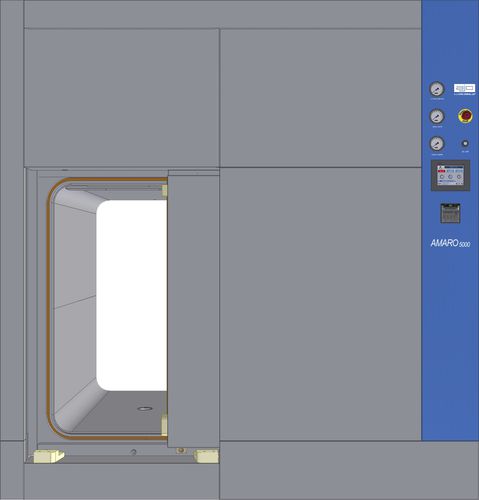

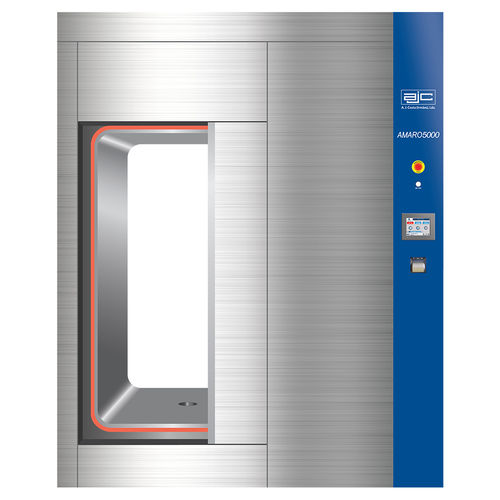

Medical autoclave AMARO 5000

laboratoryhorizontalfloor-standing

The doors are automatic horizontal sliding and built in stainless steel AISI 316L. According to the customer’s specifications, the sterilizer can be installed with the chamber at ground level, and the installation site must be prepared for this purpose. No need for external loading/unloading carts. It can be installed normally. Integral steam jacket; Easy to perceive and handle touch screen (Man-Machine interface); Computerized command of cycles; Validated cycles for typical hospitalary loads; Counting of sterilizations performed; Real-time printing of cycle parameters; Safety-stop system for door movement in case of obstruction; Safety system against door opening in mid-cycle in case of power failure; Incorporated energy and water saving systems; Extended listing with errors associated to eventual cycle-specific failures; Chamber electrolytic polishing; Equipment fully built in stainless steel, free of ferrous materials Accurate pressure and temperature sensors. Exterior loading car; Rolling load platform; Load baskets; Silent air compressor; Water softener. Chamber pre-heating 134 ºC Wrapped textiles 134 ºC Wrapped instruments 134 ºC Instruments in containers 134 ºC Sensitive materials 121 ºC Prions & Quick 134 ºC Bowie & Dick 134 ºC ELECTRIC 3 ~ + N + G 400 V / 230 V 50 Hz 2,5 kW WATER Maximum pressure 6 Bar Minimum pressure 3 Bar Connection 3/4” BSP STEAM Maximum pressure 3,5 Bar Minimum pressure 3 Bar Connection 3/4” BS PNEUMATIC Maximum pressure 7,5 Bar Minimum pressure 4 Bar 3/8” male connection DRAIN Material resistant to 100 ºC Connection 2” BSP
