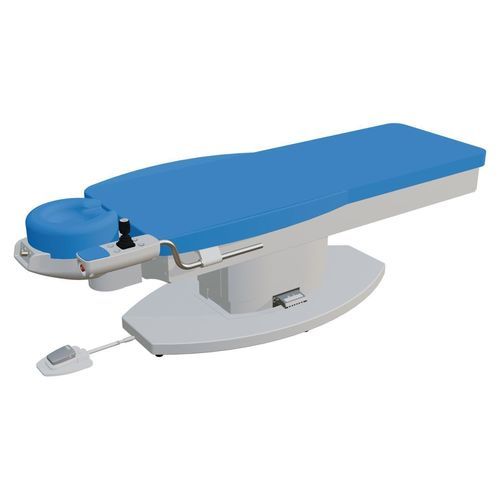

Ophthalmic surgery table LSC neo

electricadultwith headrest

Product overview
AKRUS experience in the development and manufacture of patient tables for refractive laser surgery. The LSC neo patient support table provides precise electric positioning, integrated safety interfaces and ergonomic controls designed for use with excimer and femtosecond laser systems with a fixed laser head.

Key features

• Electric high-precision positioning in Z, X and Y axes for accurate alignment with the laser focal point.
• Headrest: electric vertical adjustment 50 mm; manual tilt 20° downward and 5° upward.
• Safety: integrated interlock connection to the connected laser or optional safety foot switch to authorize movements and prevent unintended motion.
• Optional 35° swivel of the upper section to left and/or right to combine two lasers in a laser suite; axes remain movable when swiveled out.
• Analog joystick for precise speed control; speed range from 12 mm/s down to 0.2 mm/s.
• Compatible with systems from leading laser manufacturers (excimer and femtosecond lasers with fixed laser head).

Applications

• Refractive laser surgery (ophthalmic surgery)

Upholstery / color options (standard lineup)

• Combra White
• Cream
• Sand
• Pearl
• Lilac
• Blue-Gray (Bluegrey)
• Cornflower
• Midnight Blue
• Yellow
• Orange
• Red
• Opera
• Mint
• Turquoise
• Anthracite (Charcoal)
• Black

Downloads (listed documents available for the product)
Product Information LSC neo
Declaration of Conformity for the LSCneo Patient Support System (EN)
LSC neo Config Software User Manual (DE)
LSC neo Config Software
Instructions for Use Patient Support System LSCneo (EN), since SN 636.000006-00001
Gebrauchsanweisung Patient Support System LSCneo (DE), ab SN 636.000006-00001
Mode d'emploi Patient Support System LSCneo (FR), à partir du SN 636.000006-00001
Instructions for Use Patient Support System LSCneo (EN), since SN 636.000004-00001
Gebrauchsanweisung Patient Support System LSCneo (DE), ab SN 636.000004-00001
Mode d'emploi Patient Support System LSCneo (FR), à partir du SN 636.000004-00001
Istruzioni per l'uso Patient Support System LSCneo (IT), a partire dal SN 636.000004-00001
Manual de instrucciones Patient Support System LSCneo (ES), a partir del SN 636.000004-00001
Gebruiksaanwijzing Patient Support System LSCneo (NL), vanaf SN 636.000004-00001
Manual de instruções Patient Support System LSCneo (PT), a partir do SN 636.000004-00001
Návod na použitie Patient Support System LSCneo (SK), od SN 636.000004-00001
Kullanım Kılavuzu Patient Support System LSCneo (TR), başlangıç SN 636.000004-00001
사용 설명서 Patient Support System LSCneo (KO), ~부터 SN 636.000004-00001
使用說明 Patient Support System LSCneo (ZH), 起 SN 636.000004-00001
คำแนะนำในการใช้งาน Patient Support System LSCneo (TH), ห่างออกไป SN 636.000004-00001

Technical specifications

• Model name: LSC neo
• Brand: AKRUS
• Axes: precise electric positioning in Z, X and Y directions
• Headrest vertical adjustment: 50 mm (electric)
• Headrest tilt: 20° downward, 5° upward (manual)
• Swivel: optional upper section swivel up to 35° left and/or right; axes remain movable while swiveled
• Safety options: integrated interlock connection to laser or optional safety foot switch
• Joystick: analog control of movement speed; speed range 12 mm/s to 0.2 mm/s
• Typical use: refractive laser surgery; compatible with excimer and femtosecond lasers with fixed laser head
