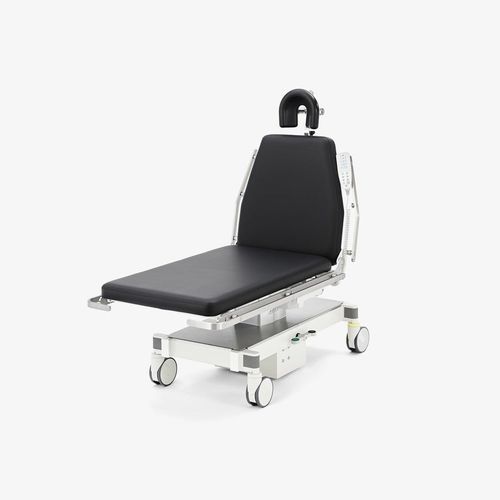

ENT operating table sb5010 HS

ophthalmicoral surgerymaxillofacial surgery

Product overview
The sb5010 HS is a mobile battery-powered operating table designed for versatile outpatient head-area procedures, including ophthalmology, ENT, maxillofacial, and plastic/aesthetic surgery. Compared with mobile operating chairs, it provides a 10 cm longer lying surface. The table is delivered fully assembled and equipped with high-quality castors and an AKRUS castor fixing system.

Key functional features

• Motorized adjustment of head, back and torso segments
• Height adjustment range: 61 cm – 96 cm (seat height 640–990 mm; stroke 0–350 mm)
• Two lifting column options: standard (max patient weight 200 kg) and heavy-duty (max 300 kg)
• Control unit with on/off, battery capacity indicator, motor control buttons and six memory positions
• Emergency shock position accessible by quick control
• Upholstery available in multiple colors and two thicknesses
• Delivered fully assembled; authorized medical-technology dealers provide service

Application areas

• Ophthalmology
• ENT, oral and maxillofacial surgery
• Plastic, reconstructive and aesthetic surgery

Technical data (selection) - Dimensions & weight
Chassis (WxHxD) | 578 x 236 x 1036 mm
Chassis incl. foot switch (WxHxD) | 578 x 236 x 1121 mm
Chassis width | 560 mm
Width with equipment rail | 700 mm
Bed surface width | 590 mm
Depth of lying surface | 990 mm
Backrest length (without headrest) | 610 mm
Length of lying surface (without headrest) | 1615 mm
Length incl. standard headrest (max. extension) | 1933 mm
Headrest extension | 0-100 mm
Maximum patient weight (standard lifting column) | 200 kg
Maximum patient weight (heavy-duty lifting column) | 300 kg
Weight (depending on options) | approx. 118 kg

Seat & backrest adjustment ranges
Seat cushion min. (entry height) | 640 mm
Seat cushion max. (seat height) | 990 mm
Adjustment range (stroke) | 0-350 mm
Backrest horizontal to vertical | 0° - 85°
Shock storage below horizontal | -15°

Chassis / castors
Castor functions | 4 swivel castors free; 1 swivel castor directionally fixed; 4 swivel castors locked
Castor diameter | 125 mm

Electrical data & ambient conditions
Power supply (battery) | Battery, lead, rechargeable
Battery capacity | 24 V DC, 1 x 2.9 Ah
Mains connection (charging station) | 100-240 Volt
Charging time (approx.) | 4 h
Rated frequency | 50 - 60 Hz
Rated current | 400 mA
Protection class | IP 65
Continuous use per drive | Max. 6 minutes
Electrically conductive upholstery | optional

Ambient / storage
Air temperature (application) | +10 °C to +40 °C
Rel. humidity (application) | max. 50 % non-condensing
Air pressure | 700 - 1060 hPa
Storage without original packaging (air temperature) | -10 °C to +55 °C
Storage without original packaging (rel. humidity) | 10 % to 95 % non-condensing
Storage/transport in original packaging (air temperature) | -40 °C to +70 °C
Storage/transport in original packaging (rel. humidity) | 10 % to 95 % non-condensing

Accessories (selection)

• Armrest without adjustment options (item no. 241.030260)
• Armrest with ball joint, complete PU (item no. 241.030250)
• Replacement battery, 24 V DC, 1 x 2.9 Ah (item no. 100-925)
• Headrest - flat "Berlin" (item no. 275.012500)
• Foot switch, complete (item no. 275.012020)
• Instrument tray, swiveling (item no. 275.020400)
• Multi-joint headrest (2-point) (item no. 241.030648)
• Tilting mechanism for additional headboard inclination (item no. 275.030650)
• U-shaped headrest (item no. 241.030690)
• Other items: security grille (item no. 240.020200), arthroscopy support (item no. 276.032400), 5-function foot joystick panel (item no. 649.012020), etc.

Notes
Delivered fully assembled. Six memory functions and an emergency shock position support fast and safe workflow. Follow specified ambient and storage conditions for safe transport, storage and use.

Technical specifications

• Model: sb5010 HS
• Chassis dimensions: 578 x 236 x 1036 mm
• Bed surface width: 590 mm
• Lying surface length (without headrest): 1615 mm; incl. headrest: 1933 mm (max.)
• Height adjustment: 61 cm – 96 cm (seat height range: 640–990 mm, stroke 0–350 mm)
• Backrest adjustment: 0°–85°, shock position -15°
• Max. patient weight: 200 kg (standard column) / 300 kg (heavy-duty column)
• Approx. weight: 118 kg (depending on options)
• Battery: 24 V DC, 1 x 2.9 Ah; charging time ≈ 4 h
• Protection class: IP 65
• Castor diameter: 125 mm
• Operating temp: +10 °C to +40 °C; Storage temp: -10 °C to +55 °C (without packaging)
