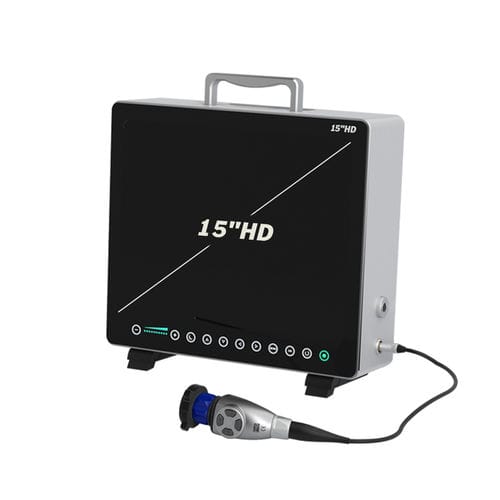

Medical camera YKD-9115E
for endoscopessurgicaldigital

medical camera
medical camera
medical camera
medical camera
medical camera
Add to favorites
Compare this product


Characteristics

Applications
medical, for endoscopes, surgical
Technology
digital
Resolution level
full HD
Sensor type
CMOS
Resolution
2 Mpx
Light source
LED, cold light
Configuration
mobile
Other characteristics
with video processor, with USB port, with screen
Weight

8 kg (18 lb)

Description

Apply in FULL field, such as Laparoscopy, Urology, Rectoscopy,ENT and so on 1) Suggest to be used for all rigid scopes and flexible scopes, do doagnosis and surgeries 2) Combining SONY CMOS camera and LED light source as a whole set. 3) With 15inch monitor 4) Could connect to 21''/22''/24'' medical monitor 4) Record video function Technical Parameters 1 - Product Model - YKD-9115 2 - Camera - SONY CMOS Camera 3 - Progressive Scanning 4 - Image Size(Horizontal*Vertical) - 1305*977 5 - Scanning System - Progressive Scanning - 6 - Horizon resolution - 720 Lines 7 - SRN - ≥50dB - 8 - Frame rate - (1305*977) 9 - Light Source - LED cold light source 10 - Video Output - CVBS 11 - Screen - 15 inch HD screen 12 - Camera Control - Freeze, White Balance
