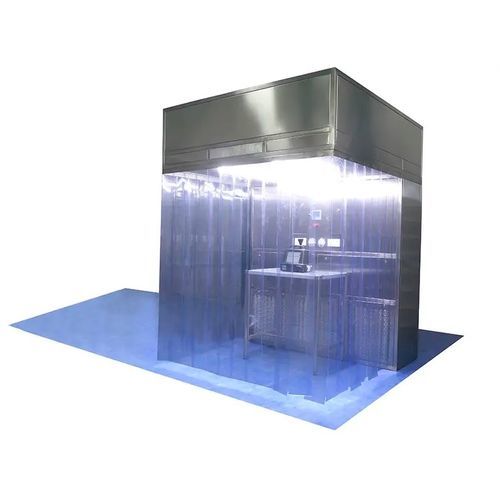

Laboratory cabin CFL PN SERIES
floor-standingHEPAvertical laminar flow

laboratory cabin
laboratory cabin
Add to favorites
Compare this product


Characteristics

Applications
laboratory
Configuration
floor-standing
Filter type
HEPA
Air flow type
vertical laminar flow
Other characteristics
stainless steel

Description

Albian vertical laminar flow cabins offer the highest level of protection for the operator, minimising the risk of possible cross-contaminations with other products or processes by HEPA filtering. Robust construction and great reliability make them suitable for a long service life in all application sectors. Construction of AISI 304 stainless steel sheet. EC fans of high efficiency and low sound level with adjustable speed. Air laminator of perforated stainless steel sheet. LED lighting. Filters – two stages: · 1 – Pre-filtering: G-4 filters (90-95% gravimetric). · 2 – Final filtering: H-14 filters (99.995% MPPS E). · Replacement of filters: from the work area. Electricity and control: · Double pressure gauge with differential reading: filters clogging control. · Electrical protection elements. · Filter clogging alarm. · Siemens S7 automata + GUI touchscreen. · Hot wire speed probe. Air speed adjustable from 0.45 m/s ±20%. PVC strips anti-static curtain. Equipment split for easy assembly.
