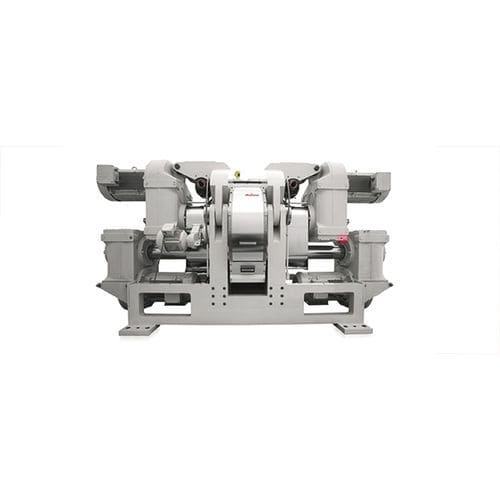

Compactor for the pharmaceutical industry PP 350

roller

The PP 350 from Alexanderwerk is the perfect roller compactor designed to meet all requirements and standards of economical compaction and is capable of achieving a throughput of approximately 6,500 kg/h with a roller diameter of 350 mm. The machine is equipped with the patented Combi-Vent-Feeder®, improving the de-aeration capability and allowing more raw material to be processed in a given period, resulting in a more efficient, and therefore more profitable operation. Through the double-sided bearing of the rollers and a robust construction, a maximum pressure force of 900 kN can be delivered. Previously determined process parameters can easily be scaled up to larger production machines of the Alexanderwerk machine series. In addition, a great flexibility as well as adaptability to different granule sizes is achievable with the PP 350. TECHNICAL DATA throughput, continuous operation - up to 6.000 kg/h granule size - variabel maximal pressure force - 900 kN installed electrical power - approx. 230 kVA weight - approx. 8,000 kg (without control) materials - 1.4571 (contact with product) pressure rollers - 1.4122 dimensions (HxWxD) - approx. 1,721 mm x 3,179 mm x 2,127 mm
