Automatic oxygen therapy system

trolley-mountedHFNC

Product Overview

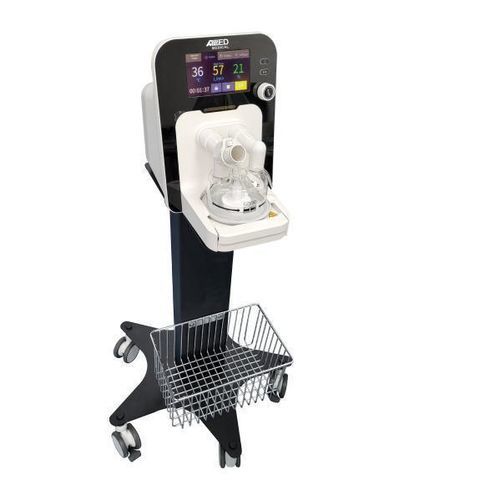

The Allied HFT is a clinical high-flow nasal cannula (HFNC) therapy device engineered to deliver warmed, humidified oxygen with precise flow and oxygen concentration control. It supports flow rates up to 80 L/min and adjustable FiO2 from 21% to 100% via an integrated electronic blender. The device incorporates an internal turbine air source and an active humidification system to maintain set temperature and humidity levels for patient comfort.

Key Features

• High-flow therapy via nasal cannula providing warmed, humidified oxygen.
• Flow range: 2 to 80 L/min (maximum 80 L/min).
• Adjustable oxygen concentration (FiO2) 21%–100% using a precision electronic blender.
• Built-in turbine as air source — no external air supply required.
• Active humidification with temperature and humidity control.
• 7-inch capacitive touchscreen displaying flow, temperature, humidity, FiO2 and SpO2; optional pulse-rate monitoring.
• Disinfection mode for maintenance and infection-control workflows.
• USB interface for connectivity and data export.
• Battery backup providing up to 6 hours of operation.
• Supplied with trolley for clinical mobility and positioning.

Additional Information
Integrated monitoring and user controls on the capacitive touchscreen allow real-time visualization of therapy parameters and easy adjustments at the point of care. The Allied HFT is intended for hospital and clinical settings that require accurate high-flow oxygen delivery with controlled humidification and temperature.

Technical specifications

• Model: Allied HFT Device
• Therapy type: High Flow Nasal Cannula (HFNC) — warmed and humidified oxygen delivery
• Flow rate: 2 to 80 L/min (max 80 L/min)
• Oxygen concentration (FiO2): 21% to 100% (precision electronic blender)
• Air source: built-in turbine
• Humidification: active humidification system with temperature and humidity control
• Display: 7-inch capacitive touchscreen showing flow, temperature, humidity, FiO2 and SpO2
• Optional monitoring: pulse-rate monitoring available
• Modes/Functions: disinfection mode
• Interfaces: USB interface
• Battery backup: up to 6 hours
• Dimensions (main unit): 310 x 228 x 322 mm
• Accessories: supplied with trolley (as per product title)
