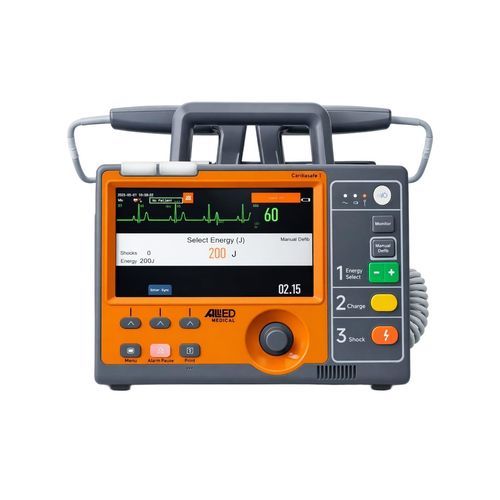

Manual external defibrillator Cardiasafe I

with ECG monitorbiphasic

Product Overview
The Cardiasafe I by Allied is a compact, portable biphasic external defibrillator for manual and synchronized defibrillation in emergency and clinical environments. It provides ECG monitoring, respiration monitoring via thoracic impedance, waveform recording and a 7-inch TFT display. The device delivers selectable energy up to 360 J and is powered by a lithium‑ion battery for extended operation.

Key Features

• Biphasic truncated exponential waveform with impedance compensation
• Manual and synchronized defibrillation modes
• 25 selectable energy levels up to 360 J
• Fast charge (charge time < 6 seconds on AC power)
• 7-inch TFT screen capable of displaying up to four waveforms
• ECG heart rate monitoring for adult and paediatric patients
• Respiration monitoring via thoracic impedance
• Built-in thermal recorder for waveform traces
• Portable design with compact form factor

Operational & Performance Details

• Patient impedance range for external defibrillation: 20–300 Ω
• Lithium‑ion battery: ≥6 hours monitoring; approximately 210 shocks at 360 J; ~4.5 hours pacing
• Charge time: < 6 seconds on AC power
• Weight: 6.5 kg
• Ingress protection: IP44

Technical specifications

• Waveform: Biphasic truncated exponential with impedance compensation
• Energy levels: 25 selectable levels, maximum 360 J
• Defibrillation modes: Manual and synchronized
• Charge time: < 6 seconds on AC power
• Patient impedance range: 20–300 Ω
• Display: 7-inch TFT, up to 4 waveforms
• ECG: Heart rate monitoring (adult and paediatric)
• Respiration monitoring: Thoracic impedance method
• Recorder: Built-in thermal recorder for waveform traces
• Battery: Lithium‑ion; ≥6 hours monitoring; ~210 shocks at 360 J; ~4.5 hours pacing
• Weight: 6.5 kg
• Ingress protection: IP44
