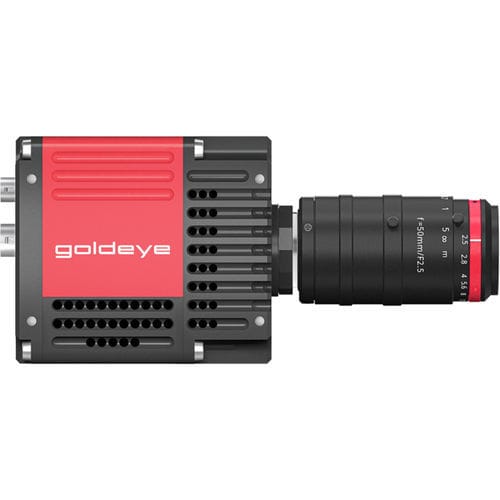

Medical camera module Goldeye CL-008 XSWIR 2.2 TEC2
digitalInGaAsinfrared

medical camera module
medical camera module
Add to favorites
Compare this product


Characteristics

Applications
medical
Technology
digital
Sensor type
InGaAs
Light source
infrared

Description

Goldeye cameras are equipped with InGaAs sensor technology making them sensitive in the short wave infrared spectrum ranging from 900 nm to 1,700 nm. Some models have extended sensitivity in the visible spectrum down to 400 nm or up to 2200 nm. All Goldeye SWIR cameras can be operated at very high frame rates and capture outstanding low-noise images. They are the perfect choice for industrial and scientific applications beyond the visible spectrum. All Goldeye models are available with either a Camera Link or a GigE Vision interface. SPECIFICATIONS Interface - Camera Link Base Resolution - 320 (H) × 256 (V) Sensor - FPA 320 × 256 | 30 µm | Extended Range InGaAs Sensor type - InGaAs Sensor size - No standard size Pixel size - 30 µm × 30 µm Lens mounts (available) - C-Mount Max. frame rate at full resolution - 344 fps ADC - 14 Bit Image buffer (RAM) - 256 MByte IMAGING PERFORMANCE Temporal dark noise - 2.5 keˉ (Gain0), 200 eˉ (Gain1) Saturation capacity - 5.0 Meˉ (Gain0), 110 keˉ (Gain1) Dynamic range - 68 dB (Gain0), 57 dB (Gain1) OUTPUT Bit depth - 8 - 14 Bit Monochrome pixel formats - Tap Geometry 1X 1Y: Mono8, Mono10, Mono12, Mono14 | Tap Geometry 1X2 1Y: Mono8, Mono10, Mono12 OPERATING CONDITIONS/DIMENSIONS Operating temperature - -20 °C to +55 °C (housing) Power requirements (DC) - 10.8 V to 30.0 V Power consumption - 20 W (at 12 VDC) Mass - 730 g (with C-Mount adapter) Body dimensions (L × W × H in mm) - 90 × 80 × 80 Regulations - CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B FEATURES Image control: Auto Auto contrast Auto exposure Image control: Other Background correction Binning DPC (defect pixel correction)
