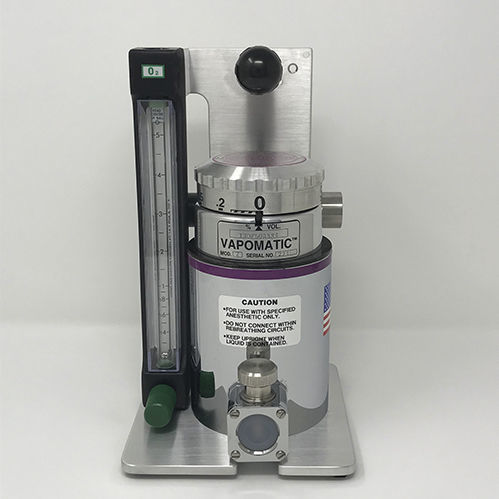

Small animal anesthesia workstation 61020B

tabletop

61020 Table Top is a non-rebreathing anesthetic machine for small animals and laboratory use. Equipped with a new Vapomatic™ Vaporizer it is a light weight and mobile solution. . Vapomatic™ Vaporizer Included Easy to grip handle Oxygen only D.I.S.S. Inlet Connection Oxygen Flowmeter Deluxe Bain Block. available Customer may substitute a 0-1 L/M flowmeter by specifying it with order 5 Year Warranty Temperature compensated. Output concentration stable during assisted respiration pressure pulses. Filler-drain-contents window combined in easy access single unit. Large dial with easy to see numbers has “off” lock and calibration indents. Dial Rotation: CW to decrease and “off” CCaW for “on” and increase. “Off” Position locks to prevent accidental actuation of vaporizer. When “Off”, vaporizing chamber is isolated and gas is bypassed to outlet. Tamperproof adjustments – dial seal must be broken for access. Sump may be removed for cleaning or wick replacement without disturbing calibration by removing one screw. Inlet and Outlet fittings are standard 23mm male & female tapers and are individually replaceable. Other connector options are available upon request. Mounting holes in rear are interchangeable with other vaporizers. Range of gas flow rates: 0.1 to 10 liters/minute. Range of ambient temperatures: 60°F to 90°F. Range of anesthetic concentration: 0.5% vol. Models available for Isoflurane or Sevoflurane. Calibration accuracy: ±.1% concentration or ±10% of dial setting at calibration points. Liquid capacity (dry): Approximately 200 ml. Weight (dry): Approximately 7.5 lb.
