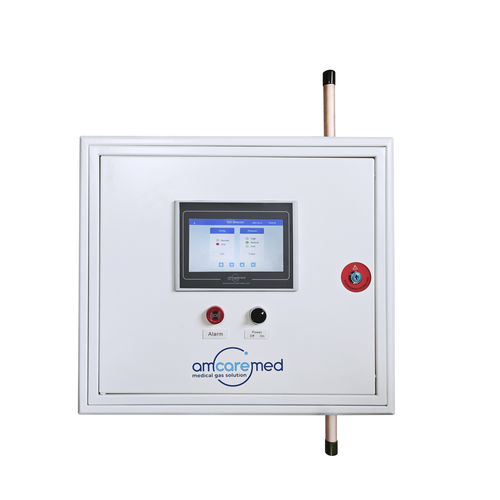

Gas control panel AM-MP-01

monitoringmedicalfor medical devices

Amcaremed medical gas monitoring cabinet is designed for real-time measurement, recording, and monitoring of medical gas supply and consumption in hospitals. It can be configured for different medical gases according to project requirements.
Amcaremed medical gas monitoring cabinet integrates flow, pressure, and gas quality monitoring functions, allowing users to monitor instantaneous flow, accumulated flow, gas pressure, purity, CO and CO₂ concentration, temperature, and dew point. Monitoring parameters can be customized according to the type of gas and application requirements.
Equipped with a 7-inch LCD touch screen and audible and visual alarms, the cabinet provides real-time operating data, historical records, and alarm information, helping hospital personnel effectively monitor medical gas consumption and supply conditions.

Specifications

• 7 inch LCD panel display
• Suitable for different medical gases according to project requirements
• Real-time instantaneous flow monitoring
• Accumulated gas consumption monitoring
• Flow range can be customized according to requirements
• Optional gas quality monitoring: gas purity, pressure, CO concentration, CO₂ concentration, dew point and temperature
• Historical data recording and analysis
• Audible and visual alarm functions
• User-friendly English interface
• Support Modbus 485 communication
• Power Supply: 100–240V AC, 50/60Hz
• Installation Type: wall-mounted cabinet
