- Surgery unit
- Operating room
- Ceiling-mounted surgical light
- AMCAREMED TECHNOLOGY

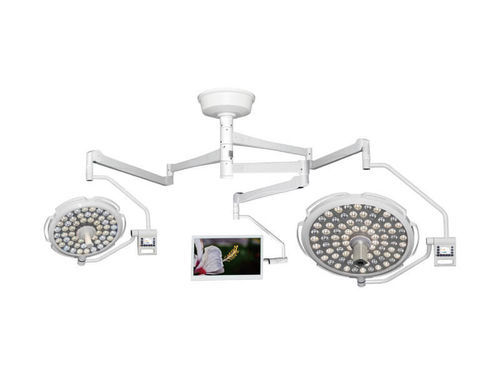

Ceiling-mounted surgical light AM-G700/500LED-TVLED3-arm95
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Configuration
- ceiling-mounted
- Light source
- LED
- Number of arms
- 3-arm
- Color rendering index
- 95
- Options
- with video camera, with video monitor
- Intensity at 1 m
Max.: 160,000 lx
Min.: 40,000 lx
- Color temperature
Max.: 5,000 K
Min.: 4,000 K
- Lifetime of bulbs
50,000 h
Description
AmcareMed ceiling mount surgical light with LCD Monitor combines shadowless lighting with a high-definition display, enhancing both surgical precision and communication in the operating room.
Product Detail
- The camera system for the surgical lights with LCD monitor is available in both central (in-light) and external mounting options. It utilizes high-frequency PWM (pulse-width modulation) dimming technology, effectively eliminating flickering issues during video capture for stable and clear imaging.
Features
- HD Camera System: The camera system monitors the surgical field and transmits high-definition images to the hospital network in real time.
- Recorded HD videos can be used for remote consultation, tele-education, and expert case discussions.
- Anti-Shake and Noise Reduction Features: Equipped with advanced image stabilization and noise reduction technology, the system effectively eliminates motion blur and filters visual noise. This ensures clear and stable image output, even under low-light conditions.
High-definition medical monitor for endoscopic surgery:
- Accurate color reproduction, smooth motion display, wide viewing angles, and excellent image clarity.
- Waterproof and antibacterial design, complies with EMC regulations, and supports multiple video input/output interfaces, including HDMI.
Technical Data
- Specification: AM-G700/500LED-TV, AM-G700/700 LED-TV
- Illuminance (Lux): 40000-160000/40000-120000 (AM-G700/500LED-TV), 40000-160000/40000-160000 (AM-G700/700 LED-TV)
- Colour temperature: 4000-5000
- Colour reduction index (Ra): ≥95
- Radiation Energy: 578w/m2/509w/m2 (AM-G700/500LED-TV), 578w/m2/578w/m2 (AM-G700/700 LED-TV)
- Field Diameter (mm): 180-280
- Service life of illuminant: 50,000h
- Power supply: AC110-240V
- Voltage: 50Hz/60Hz
- Install Height: 2.75-3m (customizable from 2.5m)
- Lamp Power: 100VA/98VA (AM-G700/500LED-TV), 100VA/100VA (AM-G700/700 LED-TV)
- LED Quantity: 138(84+54) (AM-G700/500LED-TV), 168(84+84) (AM-G700/700 LED-TV)
- Illumination Depth 20% Ec (mm): 1069/1340 (AM-G700/500LED-TV), 1069/1069 (AM-G700/700 LED-TV)
- Light Head Thickness (mm) ±5: 100/89 (AM-G700/500LED-TV), 100/100 (AM-G700/700 LED-TV)
