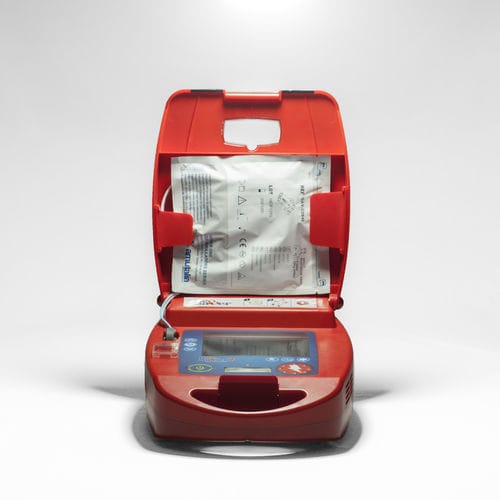

The handy PRO GEOLOCALISED AED
AED per default can be easily switched in a Manual Defibrillator giving to ALS responders the best decision-making control for a manual shock timing or an electric cardioversion (synchronised shock). The 5.7″ full colour display enable to monitor the ECG and everything needed to know about the patient and ongoing rescue treatment in compliance with IEC/EN 60601-2-27.
ECG can also be sent in real time to the AMISAVERCLOUD PLATFORM to enable another operator to monitor the ECG simultaneously with the local rescuer.
most detailed and comprehensive screen provides valuable information to rescuers:
a battery gauge with residual capacity
the indicator of available memory for recording a notice if the microphone is active or OFF the local date and time, alarms.
the adult or child protocol in use
the modality in use (AED, ECG or Manual)
the fibrillation and shock counts:
the elapsed rescue time
the heart rate (bpm)
the impedance (ohms)
the energy level to be delivered (joule)
a touch/not touch pictogram
the ECG waveform the R wave detection in Manual Synchronous
a charging bar graph if device charges a CPR bar graph and cycles countdown
Code SVP-B006: - Standard Version maximum energy at 200J
Code SVP-B007: - Power Version with maximum energy at 360J
CONFIGURATION OPTIONS (BOX CONTENT)
Conf-Norm: Standard Basic Configuration - (adult pads, disposable battery, carrying case)
Conf-Rech: Rechargeable Configuration - (adult pads, accumulator, charger station, carrying case)
Conf-Print: Print Ready Configuration - (adult pads, disposable battery, carrying case, IrDa port and thermal printer)
