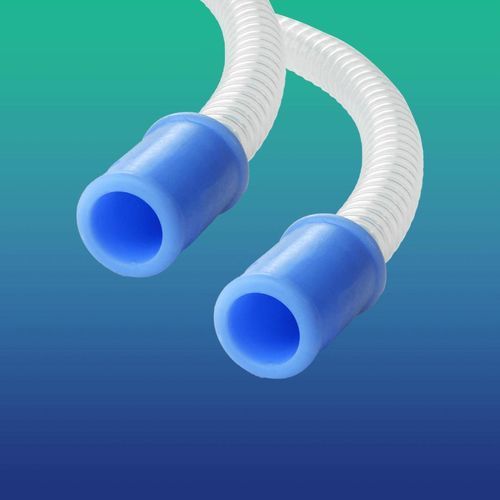

Oxygen tubing ImaBreath™

for medical gasCPAPsilicone

Product name
ImaBreath™

Overview
APPL has developed a platinum-cured silicone corrugated breathing tube for use with ventilators and other respiratory devices. The reusable ventilator circuit is supplied with or without connectors and can be customized with specific connector solutions to match clinical interfaces and device standards.

Benefits

• High tensile strength
• Custom connector options available
• Kink resistant
• Super flexible
• Sterilizable: Steam, ETO, Gamma
• Reusable

Size Chart
Sr. No. | Description | Application For
01 | ImaBreath™ – 10 mm outer, 8 mm bore with connector | Neonatal
02 | ImaBreath™ – 15 mm outer, 12 mm bore with connector | Pediatrics
03 | ImaBreath™ – 22 mm outer, 16 mm bore with connector | Adult
04 | ImaBreath™ – 10 mm outer, 8 mm bore without connector | Neonatal
05 | ImaBreath™ – 15 mm outer, 12 mm bore without connector | Pediatrics
06 | ImaBreath™ – 22 mm outer, 16 mm bore without connector | Adult

Technical specifications

• Material: Platinum-cured silicone (medical grade)
• Product type: Reusable ventilator circuit / corrugated breathing tube
• Available size options: 10 mm outer (8 mm bore), 15 mm outer (12 mm bore), 22 mm outer (16 mm bore)
• Connector options: With connector or without connector
• Applications: Neonatal, Pediatrics, Adult respiratory/ventilator use
• Properties: High tensile strength, kink resistance, super flexible
• Sterilization: Compatible with Steam, Ethylene Oxide (ETO) and Gamma sterilization
• Customization: Custom connector solutions available
