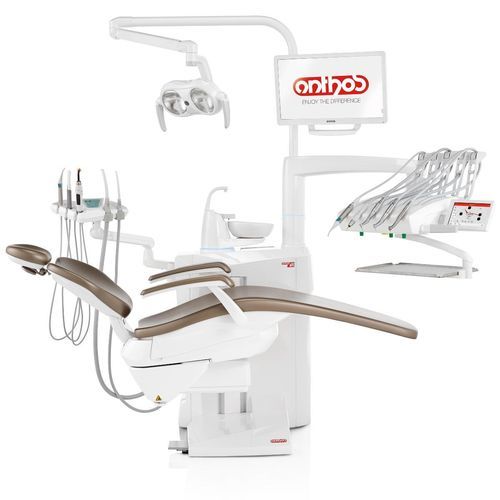

Dental unit with electric chair C9

compactwith adjustable headrestwith hygiene system

Product Overview
Special systems, technologically advanced tools, and latest-generation applications – all managed by an intuitive, feature-packed interface. Classe C9 integrates the most recent dental equipment innovations and introduces an ergonomic design, new to the Anthos range.

Versions

• Suspended chair: Clean design and a small unit body combine with functional ergonomics for a minimal footprint and ample space to work comfortably around the base of the dental unit.
• Embossed surface: The new aesthetic finishes available for the unit body enhance the design and add a distinctive, modern look with a touch of class.
• Continental: Lightweight and compact, the reflex-arm delivery system is streamlined and module positioning, including transthoracic, is easy thanks to excellent reach and a pneumatic vertical release mechanism. Instrument levers have individually adjustable traction force and balance.
• International: With its rational design concept, the hanging tubes module is the result of a meticulous analysis of dentists' needs. Instrument layout and accessibility are designed to facilitate handpiece access from all working positions.
• Cart: Ultimate freedom of movement. The cart version with traditional hanging tubes delivery allows the dentist to position instruments anywhere around the patient chair.
• Hybrid: Based on the Continental model with reflex-arm delivery, this version is flexible enough to be used by left-handed dentists thanks to the extremely mobile support arm system.

Innovations

• Voice controls: The voice assistant feature optimises the workflow, minimises physical contact with accessory systems and streamlines any tasks performed without an assistant.
• Interactive LED Pack: The system provides LED indications on the status of the functions integrated into the dental unit. Multiple, intuitive alerts are used to communicate useful information to the dentist based on the colour of the alert.
• NFC connectivity: The dental unit recognises each dentist and activates specific settings saved during the registration. Useful in multi-user practices, the system provides up to 20 user memory slots - ideal for up to 20 dentists.

Console
During each treatment, the dentist can rely on an advanced interface with a 7” touch display. It intuitively manages integrated systems, chair movements and instruments, sets parameters and customises them for each clinical discipline: implantology, endodontics and conservative dentistry. It monitors treatment data in real time and can display images and videos directly on the screen - protected by resistant and disinfectable glass.

Endodontic Therapies

• Contra-angle: With a 4:1 reduction ratio, EVO E4 can be autoclaved and heat-disinfected. A miniaturised head aids access to hard-to-reach treatment zones.
• i-MMs micromotor: This micromotor is light, compact and fully autoclavable - ideal for precise torque adjustment.
• Apex locator: The apex distance is displayed on the Full Touch display during root canal instrumentation. The nearing of the apex is verified by the ENDO software.
• Reciprocating mode: A combination of reciprocating mode (alternating rotation movement) and the EVO E4 contra-angle allows use of reciprocating endo files.

Implantology

• Torque curves: This function allows constant monitoring of the torque delivered by the micromotor and provides a complete report on each stage of treatment. It is exportable via USB stick: the PDF provides a document to be filed with medical records.
• i-MMs micromotor: This powerful, autoclavable micromotor delivers a torque of up to 70 Ncm and, together with the EVO R20L contra-angle, provides a perfect response to the implantologist's every need.
• EVO R20L contra-angle: Designed for implant surgery, it can be removed, autoclaved and heat-disinfected; it features internal cooling and external spray as well. LED lighting is powered by an integrated generator.
• Peristaltic pump: Controlled by the Full Touch control panel, the peristaltic pump is incorporated on the dentist’s module, thus eliminating the bulk of modules, carts and rheostats.

Chairs

• Suspended chair: Ergonomic design improves the medical team's access to the patient, thanks to generous space beneath and around the chair.
• Soft Motion: With Soft Motion technology, chair movements are gradual, smooth, and virtually vibration- and noise-free—particularly relaxing for the patient.
• Slow Mode: Extremely fine patient chair adjustments can be made - especially useful during implantology or when using a microscope.
• Sliding movement: With this function, the dentist doesn't have to reposition lights or instruments during treatment. Backrest and seat movements are synchronised, expanding operating space around the 12 o'clock area.
• Patient presence sensor: It detects patient presence and can be connected to useful automated functions. With Di.V.A., the sensor collects and processes statistical usage data for the dental unit.
• Backrests: A choice of three backrest types - narrow, wide and Nordic - meets all ergonomic needs. Every option guarantees patient comfort and easy access.
• Headrest: Designed to fit patient anatomy, the Comfort headrest with orbital movement enables perfect head positioning for maximum comfort, even during lengthy procedures.

Hygiene

• Continuous disinfection (W.H.E.): Certified DVGW continuous disinfection system prevents backflow contamination of the dental unit's water supply.
• BIOSTER & FLUSHING: The automatic BIOSTER system performs intensive disinfection of instrument spray circuits with antiseptic liquid. FLUSHING quickly rinses out residual liquid from the ducts.
• Cannula flushing (A.C.V.S.): It is the automatic system for flushing and disinfecting the suction system between patients.
• S.H.S.: The device supplies water to the sprays as an independent alternative to mains water - powered by a distilled water reservoir.

Lighting
Both operating lights feature LED sources, a 3-axis joint, hermetically sealed front panel, no-touch sensor to adjust intensity, and a dual reflector to ensure a broad, shadow-free work zone.

• Venus LED MCT Lamp: It allows the selection of three colour temperatures for optimum oral cavity lighting. Light intensity up to 50,000 Lux is adjustable via the “no touch” sensor. Curing Mode prevents premature composite polymerisation and ensures optimal field illumination.
• Venus LED MCT View Lamp: It can be equipped with an integrated camera for 4K video and up to 13M photos, ideal for sharing clinical cases and teaching. Thanks to Liquid Lens technology, Smart Focus enables quick, precise digital focusing.

Integrated Radiology and Multimedia
Classe C9 can be integrated with diagnostic tools for digital workflows. The multimedia system includes an X-ray unit, digital sensor, and HD camera on the dentist’s or assistant's module. When connected to the practice network, PC images can also be displayed. Immediate, clear sharing of information enhances the dentist-patient relationship.

• 22” LED Monitor: Full HD 16:9 monitor with excellent brightness and contrast from LED sources. Viewable from any angle, available in multitouch version and two mounting options.
• Endoral Sensor Zen-X: Available in two sizes, integrated into the dentist's module and ready to use with a USB cable. Captures HD images with minimal X-ray doses.
• C-U2 HD camera: High-resolution images improve dentist-patient communication. Easy to use, no manual adjustment required; slim design for easy access to distal zones.
• RXDC - HyperSphere technology: Intra-oral X-ray system integrated with the dental unit, controlled wirelessly. The tube head rotates freely around a spherical joint for positioning flexibility.

Dental Unit Software

• Di.V.A.: The digital virtual assistant that enables professionals to monitor equipment use and analyse studio efficiency.
• IRYS: All-in-one software platform for 2D and 3D imaging, DATA PROTECTION certified and IHE/DICOM network compliant, fully integrated with Anthos systems.
• Neowise: Cutting-edge medical software developed to support healthcare professionals in managing their daily practice.
• Remote assistance and EasyCheck: Optional digital services delivered remotely to boost studio workflow efficiency. When connected to the web via EasyCheck, the dental unit can receive real-time diagnostics and technical support.

Characteristics / Technical Specifications

• Advanced ergonomic design with suspended chair
• Multiple delivery system versions: Continental, International, Cart, Hybrid
• 7” touch display console for system and instrument management
• Voice assistant and NFC user recognition (up to 20 users)
• Integrated hygiene systems: W.H.E., BIOSTER, FLUSHING, A.C.V.S., S.H.S.
• LED operating lights with no-touch sensor and camera integration
• Integrated radiology: X-ray unit, digital sensor, HD camera
• Patient presence sensor and statistical data collection
• Multiple backrest and headrest options for patient comfort
• Endodontic and implantology dedicated micromotors and contra-angles
• Integrated peristaltic pump for implantology
• Sliding and soft motion chair movement
• Integrated dental software: Di.V.A., IRYS, Neowise, EasyCheck
