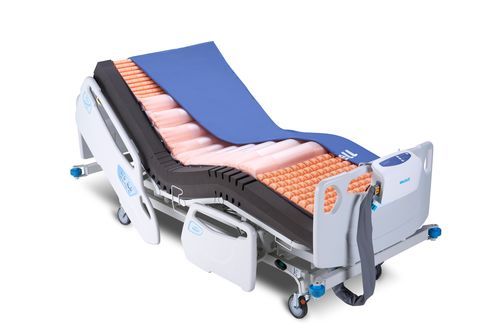

Transfer mattress Crossover Nio

for hospital bedsair-operatedfoam

Product Overview
Crossover Nio is a Power Hybrid Mattress engineered for pressure injury prevention in acute and critical care settings. It blends a foam base with active air cells to support both powered and non-powered therapy without requiring mattress replacement. Designed to streamline clinical workflows by enabling bedside mode transitions and continuous, adaptive care.

Clinical Benefits & Efficiency

• Seamless convertibility between non-powered and active therapy modes without moving the patient, reducing time and physical handling.
• Optimized workflow that eliminates mattress swaps and decreases caregiver physical strain.
• Continuous skin integrity through consistent pressure redistribution across the patient journey.

Key Features

• Hybrid design combining foam comfort with dynamic pressure relief technology.
• Therapy modes: Alternating Pressure (AP), Continuous Low Pressure (CLP), Max Firm, and non-powered modes for procedures and transport.
• Auto-resumed Max Firm function to ensure continuous therapeutic integrity.
• Independently replaceable, modular components for simplified maintenance and extended product life.

Advanced Heel Protection

• PetalFlex™ Design: a heel-specific foam structure with precision-cut grooves and independently responsive foam segments to adapt to individual heel contours, increasing contact surface area and reducing peak pressure at the heel tip.
• Sloped foam heel zone supports the lower calf to offload pressure from the calcaneus without additional positioning devices.
• When combined with AP and CLP modes, the PetalFlex™ Design provides continuous heel pressure redistribution throughout different stages of patient care.

Operation & Clinical Use

• Therapy modes can be switched at the bedside; one caregiver can complete mode transitions in under two minutes.
• Non-powered mode: keep the quick connector cap closed while the patient is on the mattress to maintain internal air pressure; re-inflate the mattress approximately every 14 days with the patient off the mattress to maintain internal pressure.
• Non-powered mode provides passive pressure redistribution through the foam base when pump support is not in use.

Maintenance & Storage

• Store the mattress flat with the Quick Connector cap closed.
• Do not fold, crease, or stack the mattress.
• Avoid direct sunlight, high temperatures, and humid environments.
• Modular design allows independent replacement of components for rapid upkeep and reduced operational costs.

Supporting Documents
Product Brochure (dated 2026 Mar 26).

Technical specifications

• Mattress Dimension (L x W x H): 75-83 x 32-35 x 6 in / 1900-2100 x 800-900 x 150 mm
• Mattress Weight: 34 lb / 15 kg
• Maximum Patient Weight: 550 lb / 250 kg
• Pump Dimension (L x W x H): 11 x 7 x 5 in / 290 x 190 x 130 mm
• Supply Voltage: 100-120 V ; 220-240 V — Frequency: 50 Hz ; 60 Hz
