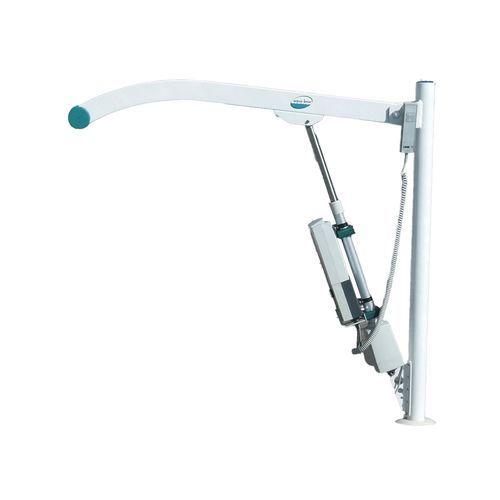

Battery-operated pool lift Aqualev

electricportablefloor-mounted

Presentation
The Aqualev is a pool transfer lift designed to enable safe, comfortable and independent access to bathing for people with reduced mobility. It integrates a self-contained electric elevation system and 360° electric rotation to facilitate transfers for both the user and the caregiver.

Description
The device provides a smooth, low-effort transfer between wheelchair and water using a secure lifting mechanism. Aqualev runs on a 24 V battery and can be configured with a range of accessories to adapt the transfer to individual clinical and operational needs, ensuring a dignified bathing experience.

Options and accessories

• Submersible wheelchairs
• Floating transfer slings
• Different harness and stretcher sizes (S, M, L, XL)
• Seat with armrests (316L stainless steel frame)

Key benefits

• Autonomy and safety: 24 V battery operation, mechanical and electrical emergency descent, and emergency stop for secure transfers.
• Easy installation and handling: discreet anchoring into a sealed stainless-steel sleeve and removable pivot arm; lightweight design (<15 kg) for storage and transport.
• Versatility and user comfort: integrated 360° electric rotation and a comprehensive accessory range to meet specific patient needs.

Technical specifications

• Mast and pivot arm: special T6 aluminium alloy with epoxy powder coating.
• Electric actuator with safety nut: 10,000 N thrust (operates on 24 V battery).
• Power supply: 24 V battery pack supplied, with emergency descent and emergency-stop device.
• Control: remote control for lift and mast rotation.
• Load capacity: supports up to 130 kg.
• Unit weight: under 15 kg for ease of handling and storage.
• Fixing: installation into a sealed stainless-steel sleeve; removable pivot arm allowing unobstructed pool access.
• Battery autonomy: operates on 24 V battery with independent charger; autonomy varies with use frequency.
• Additional safety: dual emergency descent function (mechanical and electrical).
• Maintenance and compliance: Class I medical device; annual load test recommended and periodic inspections advised (battery, actuators, pivot mechanism).
